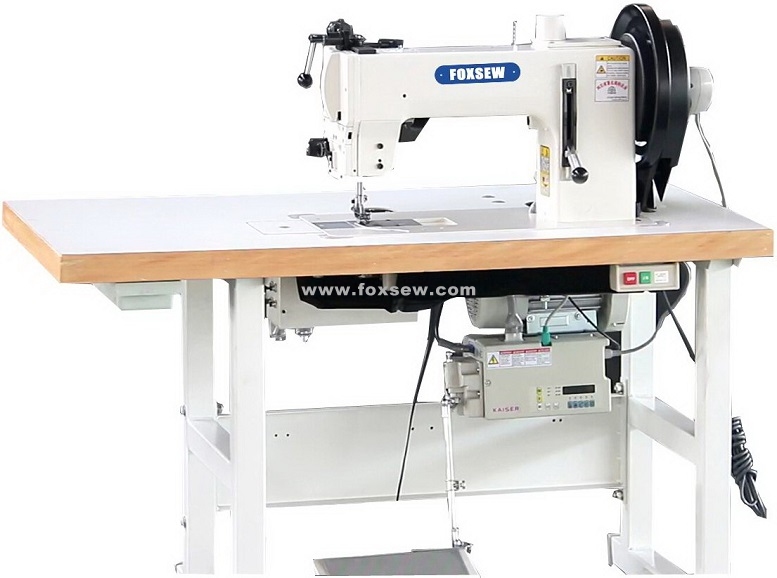

Extra Heavy Duty Compound Feed Walking Foot Lockstitch Sewing Machine

  • Product Name:  Extra Heavy Duty Compound Feed Walking Foot Lockstitch Sewing Machine
  • Model NO.:  FX-204-370
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Extra Heavy Duty Compound Feed Walking Foot Lockstitch Sewing Machine

FOXSEW 204-370 Flat Bed Extra Heavy Duty Triple Feed Walking Foot Lockstitch Sewing Machine with Large Barrel Shuttle for Extremely Heavy Duty Materials with Thick Thread
Flat Bed Extra Heavy Duty Compound Feed Walking Foot Lockstitch Sewing Machine

Extra Heavy Duty Unison Feed Walking Foot Lockstitch Sewing Machine

Applications: Leather Sofas, Upholstered Furniture, Safety Harness, Saddles, Sails, Car Seat Covers, Parachutes, Tents, Tarps, Kevlar belts, Covers, Awnings, Automotive upholstery, Marine Upholstery, Buffing Wheels, Nylon or Polyester lifting slings, Cargo lashing straps (Ratchet Tie Down), Safety belts, Military belts, Industrial webbing, Industrial safety products.

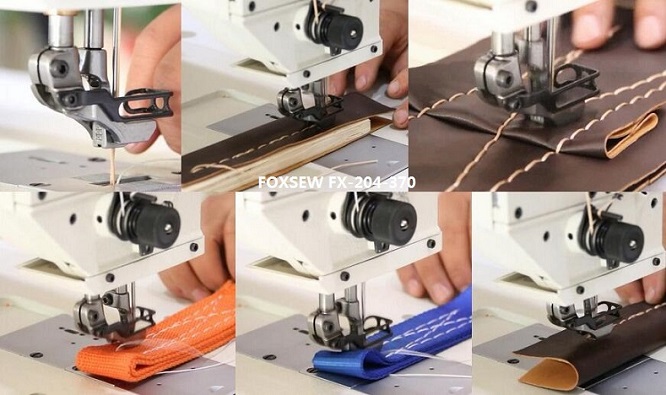

Working Video: www.foxsew.com/company-video/extra-heavy-duty-walking-foot-sewing-machine-for-leather-upholstery-and-sling-webbings-380.html

Features: Even sewing with long stitch lengths and thick threads, the FX-204-370 is characterized by an excellent stitch pattern and uniformly tight stitch formation, for the extremely sturdy design of its mechanical parts and the enhanced feeding action. This machine with heavy cylindrical shuttle hook is designed for processing extreme thread and material, such as the manufacture of leather goods, special textile, Sofa, Furniture, Car Seat Cushion, Car Upholstery, tents, harness, saddles, and decoration industry.

Specifications:

Model

FX-204-370

Max. Sewing Speed

800 r.p.m

Stitch length

0-12 mm

Needle Bar Stroke

56 mm

Thread Take-up Lever Stoke

96 mm

Operating Space

370X185 mm

Presser Foot Lift

By Hand: 14mm   By Knee: 22mm

Shuttle Hook

Cylinder Shuttle Hook

Lubrication

Manual Lubricated

Needle Type

DYX3 21#28#

Motor

750W Servo Motor
