Automatic Belt Loop Attaching Sewing Machine

  • Product Name:  Automatic Belt Loop Attaching Sewing Machine
  • Model NO.:  FX430G-BL
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Belt Loop Attaching Sewing Machine

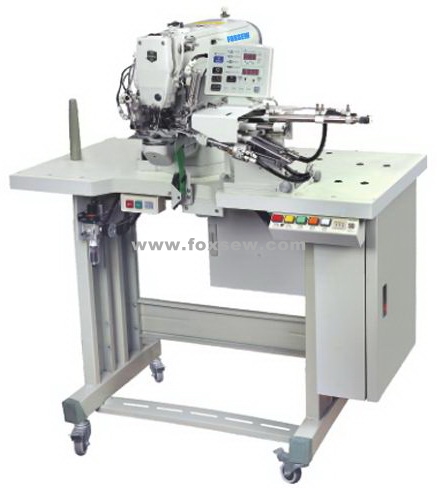

FOXSEW Automatic Belt Loop Attaching Sewing Machine Single Needle

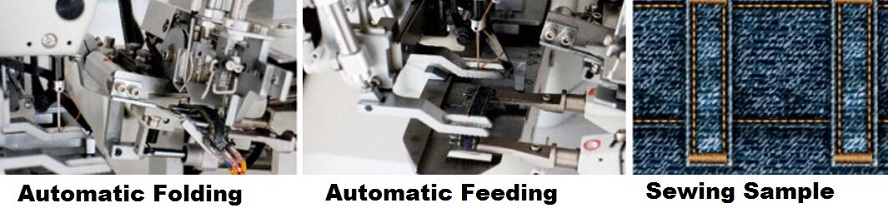

This machine is a new type of machine that is specified with automatic belt loop cutting, curving, bartacking and folding devices in one-operation with high efficiency and high precision.

Working Video-1: www.foxsew.com/company-video/automatic-beltloop-attaching-sewing-machine-1086.html

Working Video-2: www.foxsew.com/company-video/automatic-belt-loop-attaching-sewing-machine-221.html

Working Video-3: www.foxsew.com/company-video/automatic-belt-loop-bartacking-machine-222.html

Under the condition of 8-hour operation daily, 5 belt loops for each pair of trousers and 36-time needle handling, each piece of equipment person is able to process 1000 pairs. As the machine is installed with high-speed lockstitch sewing nose, it is suitable for all kinds of belt loops. The collocated airflow magnet valve and oil-free cylinder could prevent noise and oil contamination. Automatic device carries the belt loop to under the needle, thus away from worrying about hand infibulations and hence safe operation.

Specifications:

Model NO.:  FX430G-BL
Max. Sewing Speed:  2700 r.p.m
Sewing Area:  Length: 42-80mm, Width: 10-20mm
Stitch Length:  0-13 mm
Presser Foot Lift:  21 mm
Weight:  125 KGS
Hook:  Large Shuttle Hook
