Heavy Duty Mattress Flanging Machine

  • Product Name:  Heavy Duty Mattress Flanging Machine
  • Model NO.:  FX-B5
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Heavy Duty Mattress Flanging Machine

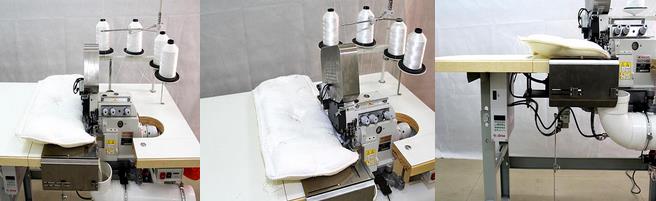

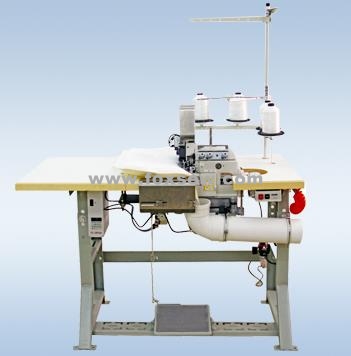

FOXSEW Heavy Duty Mattress Flanging Machine

Working Video-1: www.foxsew.com/company-video/heavy-duty-mattress-flanging-machine-1237.html

Working Video-2: www.foxsew.com/company-video/heavy-duty-flanging-machine-with-air-floating-table-1236.html

Working Video-3: www.foxsew.com/company-video/heavy-duty-mattress-flanging-machine-1554.html

Working Video-4: www.foxsew.com/company-video/mattress-heavy-duty-flanging-machine-1575.html

FX-B5 Heavy Duty Mattress Flanging Machine is mainly used for flanging mattress panel and over-thick fabric. It can also sew that non-woven fabric together with the panel.

Technical characteristics:

1, Japan PEGASUS high speed straight needle sewing head

2, Straight needle design,

3, With auto oiling system ensuring sufficient lubrication; with cartridge oil filter, easy for replacement & cleaning.

4, Push-button type stitch length regulator, no need for changing the cam

5, Micro adjustment of differential feeding ratio

6, With thread & needle cooling system, thread & needle can be lubricated and cooled by C10 oil, avoiding the thread & needle breakage as well as thread leaping.

7, Adopt double-needle-five-thread synchronous structure and strong cloth-feeding system ensuring feeding precision and perfect seam,

8, The sewing speed is controlled with imported needle position motor and control box.

9, Equipped with pneumatic auto presser foot, equipped with special encoder to position needles,

10, Low noise, small vibration, stable performance

 Specifications:

Model No.

FX-B5

Flanging Thickness

35-80 mm

Flanging Width

30 mm

Max. Rotate Speed

5000 r.p.m

Stitch length

2-5 mm

Needle Model

RM-6 22-23#

Needle Gauge

2.0, 3.0, 5.0 mm

Air Presure

0.5-0.8 Mpa

Sewing Head Type

PEGASUS

Upper Feed Belt Available

Yes

Needle Bar Type

Double-Bar

Pneumatic Cut Flanging

Yes

Power Supply

380V/220V,50/60HZ, Single-Phase

Total Power

550W

Machine Weight

180 KGS
