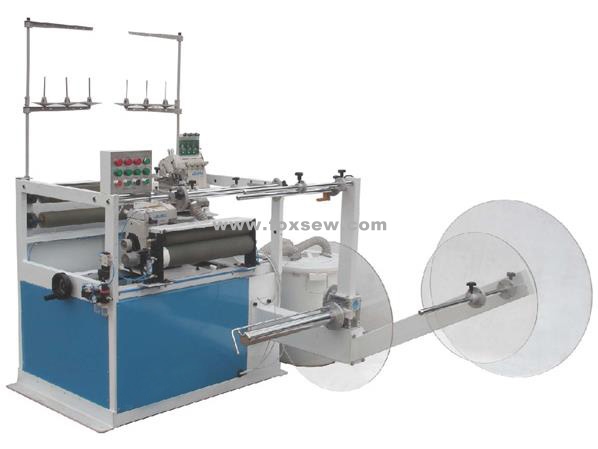

Double Sewing Heads Serging Machine

  • Product Name:  Double Sewing Heads Serging Machine
  • Model NO.:  FX-KB-2A
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Double Sewing Heads Serging Machine

FOXSEW Double Head Serging Machine for Mattress

Working Video 1: www.foxsew.com/company-video/double-sewing-heads-serging-machine-84.html

Working Video 2: www.foxsew.com/company-video/double-serging-machine-83.html

Features: Double Sewing Head Serging Machine is mainly used to double serge mattress side panel. It has two independent sergers, synchronization of them is controlled by two AC motors with frequency converter velocity modulation, the machine has two servo drive variable speed puller with long lasting urethane rollers, material tensioning device, and re-winder. Machine has excessive material auto-cutting device along with a vacuum scrap-collection device. Additionally, it is equipped with thread break detection device as well as material splice auto-stop device. It is used for flange the mattress fabric. It has two independent flanging/sewing head, flanging/sewing head driving by inverter, feeding by the polyurethane rollers, winding synchronously, auto-cutting excessive material. Additionally, it is equipped with a waste-collecting device by vacuum, thread broken detection device and material splice auto-stop device.

Specifications:

Model No.

FX-KB-2A

Serging Mode

Single Border, Dual Border

Sewing Width

5-7 mm

Serging Width

150-500 mm (adjustable)

Serging Speed

15-30 m/min (adjustable)

Max. Material Thickness

20 mm (middle density)

Needle Pitch

0-6 mm (adjustable)

Max. Presser foot lift

15 mm

Rated Air Pressure

0.5-0.8 Mpa

Power

2.5 KW
