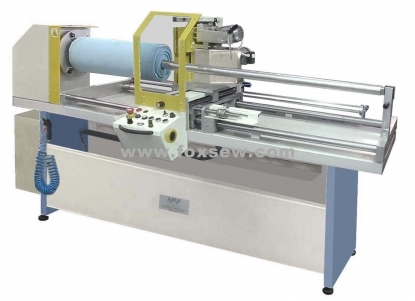

Semi Automatic Slitting Machine

  • Product Name:  Semi Automatic Slitting Machine
  • Model NO.:  FX-T50E
  • Origin:  Zhejiang,China
  • Brand Name:  FOXSEW
  • Product Details:  Semi Automatic Slitting Machine

Features:

· Highly safe for the operator. The blade is totally protected by a guard and the operator can perform the cut only if

both hands are on a pushbutton and on the cutting lever.

· Blade diameter 40 cm with fixed speed. Max roll diameter 25 cm (10"). Accuracy of positioning ±0.3 mm

· Manual cut with positioning of the blade carriage with a pneumatic cylinder. The operator pushes a button and the

blade carriage indexes to the preset cutting width.

· The maximum cutting width 20 cm, wider cuts can be done by setting half width and doing two displacements of

the blade carriage.

· Fixed roll rotation speed. Adjustable speed on requests.

· Sharpening of the circular knife (both sides) with motor for the main grindstone and auxiliary grindstone for

removing the sharpening burrs.

· Machine includes a diamond to dress the main grindstone.

· Self centering mechanic chuck with grippers to lock the roll on the cardboard and on the external diameter of the roll.

Technical Data:

Ø Roll dimensions : diameter 250 mm x 2000 mm (1) Kg.20 max (on requests diam. 200 x 2000 mm with no extra cost)

Ø Accuracy of blade positioning : ±0.3 mm

Ø Blade diameter: 400 mm (on requests diam. 360 mm)

Ø Roll shaft diameter: 49 mm (on request from 33 to 49 mm)

Ø Electric data: 2,2 kW - 400V 50Hz 3-phases (other voltages on request)

Ø Compressed air: 6 bar

Ø Space requirements: 2500 x 1000 mm approx

Ø Net weight: 400 kg
