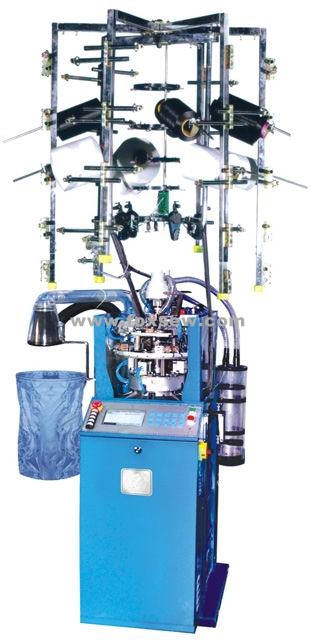

Jacquard Silk Socks Machine

  • Product Name:  Jacquard Silk Socks Machine
  • Model NO.:  FX-E12
  • Origin:  Zhejiang,China
  • Brand Name:  FOXSEW
  • Product Details:  Jacquard Silk Socks Machine

FOXSEW Jacquard silk socks knitting machine is controlled by a computer system with a single cylinder four-woven plain weave silk stockings machine. It adopts an independent exhaust fan or central exhaust system fabric stretch. the machine is equipped with torsion device, needle rotation servo motor direct drive to reduce the transmission chain and transmission error. Needle lift by the stepper motor control can have a different density pressure lubricant for lubrication of needles, life and death and the election needle pieces. Computer controls production of socks, the whole process, style and quality. The machine can use synthetic fibers and bare spandex covered yarn and other raw materials to produce stockings and products, including pantyhose, long stockings, short socks, T stockings and other nine points stockings.

Complete Machine Consumption:1.5kw

Average Output:350 pieces of panty-hose every 24 hours.600 pairs of jacquard socks every 24 hours

Drive System: Direct Drive Servo Motor Synchronous Belt Drive

Autos top: Auto stop for broken yarn by infrared

Oil Feeding System: Full-Automatic Oil Feeding Apparatus



Specifications:



Model

Needle Cylinder

Needle No. and Needle Selections

Specifications

Brief Introduction to function

FX-E12

4 Inch

Standard 400-NeedleEight-Class Pneumatic Needle Selection at NO.1 Group and NO.8 GroupNO.2Group and NO.4 Group and

the Highest Speed:800RPM.7Millmeter Needle Latch

Different selected float covering yarns, plain weave,1×1.3×1 fixed grid mesh, T class 1×1 middle reinforce. all kinds of covering yarns

FX-E7

four 400-needle electronic needle selectors

the Highest Speed: Plain Weave:800RPM,Jacquard:500 RPM, subject to actual cam angel

Different selected float covering yarns, plain weave grid mesh, twill weave grid mesh. yarn-added jacquard and jacquard design
