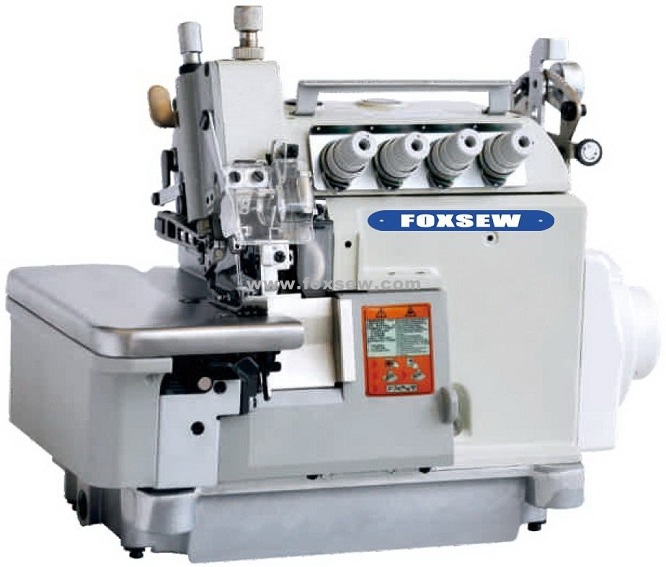

Direct Drive Top and Bottom Feed Overlock Sewing Machine

  • Product Name:  Direct Drive Top and Bottom Feed Overlock Sewing Machine
  • Model NO.:  FX-EXT5200D
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Direct Drive Top and Bottom Feed Overlock Sewing Machine

FOXSEW Direct Drive Top and Bottom Feed Super High Speed Overlock Sewing Machine EXT Series.

Application: Clothing, underwear, bedding and thin package and leather goods’ overlap sewing.

Working Video: www.foxsew.com/company-video/top-and-bottom-feed-overlock-sewing-machine-416.html

Characteristics:

This machine series is using the new feed mechanism that using upper and lower feed dog which operate independently. By increasing the differential feed ratio and superior combination of properties, this machine can eliminate dislocation when sewing. Also this machine can easily combine different materials, and make the difficult operating such as zigzag feed easier. 1. Top and bottom feed dogs on the variable top feed machines provide for positive and accurate fabric feed. This feature prevents twisting of the fabric being sewn, achieving high quality production.
2. These machines neatly perform shirring, piping and blind stitch hemming, operations that are difficult with bottom feeding alone, while preventing puckering. Variable top feed machines ensure uniform quality during a wide variety of sewing operations

Specifications:

Model

FX-EXT5200D

Needle

DCX27

Sewing Speed

7500-8500 r.p.m

Packing Size

472x495x380 mm

Weight

37/28 KGS
