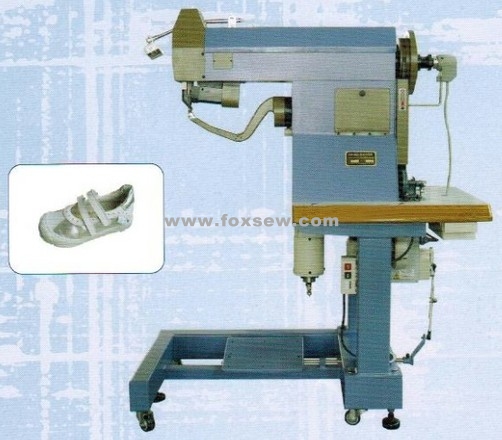

Stitching machines for innersoles

  • Product Name:  Stitching machines for innersoles
  • Model NO.:  FX-C500
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Stitching machines for innersoles

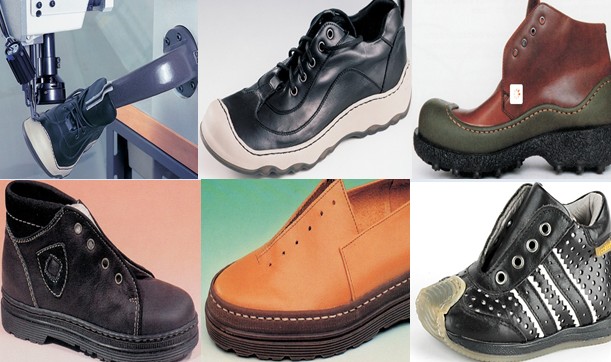

Characteristics: Single needle moving arm with rotation of 160°, one needle, stitch knoted, rotative crochet and unison feeding system. The bobbin tread is that visible of the seam. Possibility to stitch the small size minimum 18. The machine can be provided with a horn different than that exhibited in the picture upon request.

Specifications:

Sewing Speed

stepless speed regulating

Needle

195# Straight hook needle (HN83/53)

Stitch

Double lockstitch

Stitch Length

3-13 mm

Sewing Thickness

2-6 mm

Motor

600W Single Phase 220V

Net Weight

172 KGS

Packing Size

112*56*134 CM
