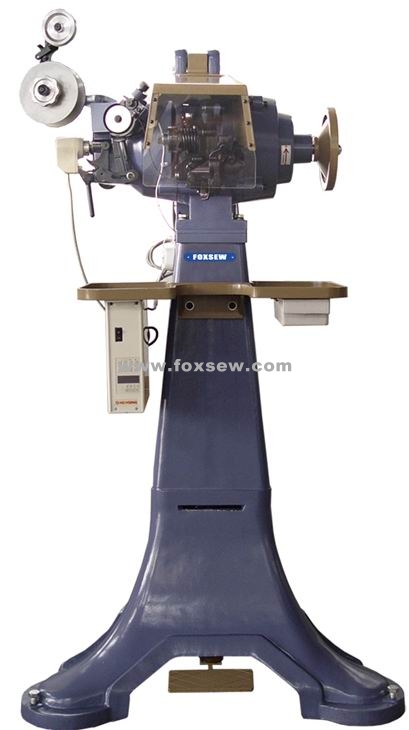

Staple Machine for Goodyear Shoes Welt Sewing

  • Product Name:  Staple Machine for Goodyear Shoes Welt Sewing
  • Model NO.:  FX-621
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Staple Machine for Goodyear Shoes Welt Sewing

FOXSEW Stapling Machine for Goodyear Shoes Welt Stitching

Working Video: www.foxsew.com/company-video/stapling-machine-for-goodyear-welt-stitching-766.html

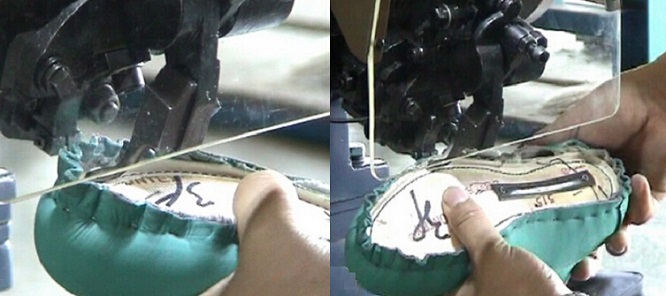

This machine is suitable for combination of footwear upper and insole, necessary equipment before Goodyear welt sewing process. It is used to tighten the cut to the last and fit it to the rib by use staples, which the machine itself produces from a roll of wire. The adjustable pincers, facilitate the tightening operation, pulling the leather and the lining againest the rib while the machine nails the staples. As the wire is very thin, it doest not complicate to make the welt stitching. This machine has been designed to solve the common problems of mechanical machines, by replacing the brake and clutch with a variable speed electronic servo motor.

Specifications:

Model NO.:  FX-621
Staple Shank Length:  9 mm
Steel Wire Diameter:  0.6 mm
Stapling Speed:  200-300 r.p.m
Stapling Thickness:  3-13 mm
Servo Motor:  750 W
Weight:  395 KGS
Packing Size:  113x103x178 CM
