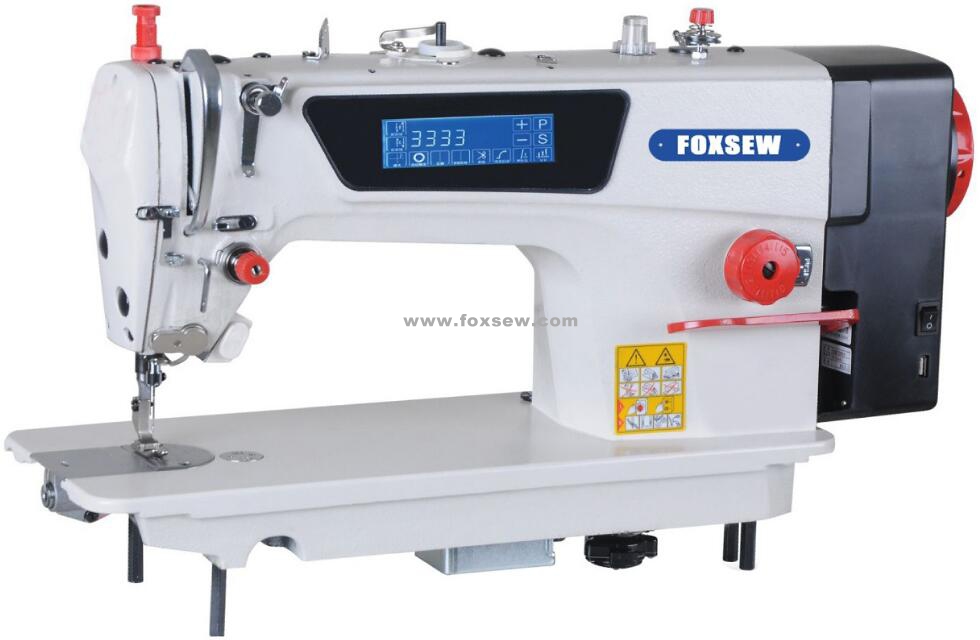

Smart Computer Touch Screen Intelligent Single Needle Lockstitch Sewing Machine

FOXSEW High Integrated Intelligent Computerized Single Needle Lockstitch Machine with Touch Screen and USB Plug

High Integrated Mechatronic Computerized Direct Drive Single Needle Lockstitch Sewing Machine

High Speed Direct Drive Computerized Single Needle Lockstitch Sewing Machine

This machine is a new generation of smart computer lockstitch sewing machine, adopting touch control panel.
Sewing function can be easily set after entering panel by simple fingertip clicking. Touch panel is easy to be set, able to be operated directly with many simple pictures guide for choosing. It adopts the design of oil-free thread take-up lever and needle bar structure, as well as closed oil pan structure, avoiding oil pollution to sewing materials. It is equipped with detective device, automatically sensing thickness and thinness of sewing materials, automatically supplementing feed in step of sewing materials, effectively reducing needle
stitch length change. Less nest is for better quality, because of reducing workload of picking thread head.
Needle thread tension can be automatically adjustable by electronic thread release solenoid, based on thickness and thinness of sewing materials by system. Thread cutting system chooses stepping motor, for more simple structure, and shorter thread head remaining. The two-way drive stepping motor allows one stepping motor to finish two actions of thread cutting and presser foot lift simultaneously. FOXSEW FX9992D can sew 9 programmable pattern designs with different stitches.

Applicable to common thin material, medium heavy such as knit wear, shirt, suit, leisure wear, jeans.

Characteristics:
1.It is a perfect integration of mechatronic lockstitch sewing machine which has the inside electronic control box and the built-in control panel . it has a number of patents ,can be easily assembled and conveniently operated.

2. Newly designed patterned appearance, extra width space convenient for the store of sewing materials, easy for operation.

3. Self-lubricate design of take-up-lever mechanism to increase the service life.

4. Adopt inside direct drive servo-motor system to improve the braking precision when quick start.  Power saving up to 60% to reduce the cost.

5. Transmission mechanism adopt oil pump automatic oil feeding system to ensure the lubrication when machine in high speed or low speed operation.
6. Adopt inside wounding system to increase the efficiency.

7. Auto safety switch devices to power off after the reverse running of the machine to ensure the safety when fixing and cleaning. Full reflect the product humanization design idea.

8. High-precision gear and main parts imported to comprehensively reduce the noise and improve the quality and extend the service life.

9.Automatic trimming, automatic needle positioning, automatic needle counting, automatic reverse sewing counting, automatic thread wiping, etc available to ensure the smart sewing. More humanization,  more intellectualization apply to all kinds of complex and highly difficult process, increase the efficiency.

Specifications:
