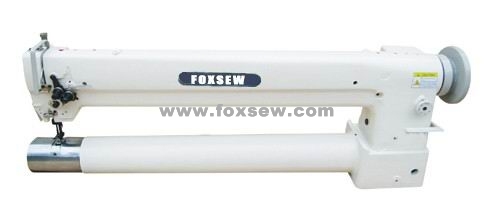

Long Arm Double Needle Filter Bags Sewing Machine

  • Product Name:  Long Arm Double Needle Filter Bags Sewing Machine
  • Model NO.:  FX-8341-760
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Long Arm Double Needle Filter Bags Sewing Machine

FOXSEW Long Arm Double Needle Cylinder Bed Unison Feed Lockstitch Machine for Filter Bags.

FX-8341 Model Normal (Short) Arm Double Needle Cylinder Bed Unison Feed Sewing Machine for Filter Bags.

Working Video 1: www.foxsew.com/company-video/long-arm-double-needle-cylinder-bed-sewing-machine-for-filter-bags-289.html

Working Video 2: www.foxsew.com/company-video/long-arm-cylinder-bed-walking-foot-sewing-machine-for-filter-bags-rolling-arm-308.html

Working Video 3: www.foxsew.com/company-video/filter-bags-sewing-machine-short-arm-294.html

Working Video 4: www.foxsew.com/company-video/long-arm-cylinder-bed-filter-bag-sewing-machine-464.html

Features: FX-8341-760 model Long Arm Double Needle Cylinder Bed Unison Feed Extra Heavy Duty Machine ,with the compound feeding of needle feed dog and presser foot prevents the slippage of materials and forms net stitch. Adopt sliding thread take-up, imported vertical double rotating hook and forming two lines of lockstitch. the arm shaft and hook shaft are driven by synchrony tooth belt. Knob-type stitch regulator and lever type reverse feeding  mechanism permit convenient operation. and install clutch safe device to prevent the damage. It is widely used in sewing tents, arch, umbrella, seat cushion, sofa etc,Saddles, Bridles, Harness, shoes, football, hot air balloon,luggage cases, suitcase… especially for filter bags cylindrical products.

Specifications:

Model

FX-8341-760

Max. Sewing Speed

1800 r.p.m

Stitch Length

0-8 mm

Needle Bar Stroke

33.6 mm

Working Space

800 mm*270 mm

Presser foot lift

By Hand: 9 mm   By knee: 25 mm

Needle Type

DP*17

Number of Needle

2

Rotary Hook

Large Vertical Hook

Needle Gauge

12,9.5,7.9,6.4,4.8 mm

Bed Size In diameter

90 mm
