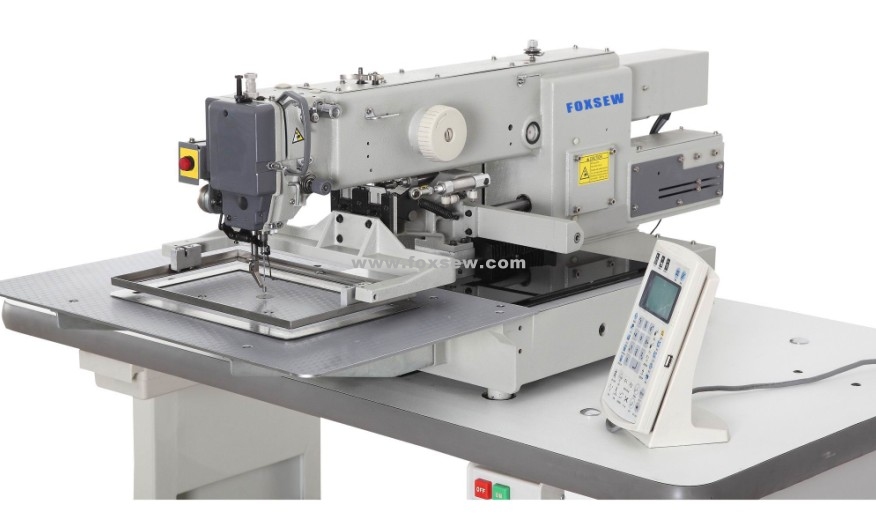

Programmable Pattern Sewing Machine

  • Product Name:  Programmable Pattern Sewing Machine
  • Model NO.:  FX2010/FX2516/3020
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Programmable Pattern Sewing Machine

Used for: Apparel, Automotive and Aircraft, Leather Goods and Shoes, Military Uniforms, Safety Equipment, Industrial Equipment, Medical, Embroidery and Decorative Stitching, Home Furnishings. Pocket attaching, Attaching Labels, Badges, Applique work, Velcro and Decorative stitch, Any operation which requires frequent stopping and changing the angle of stitching.

Suitable for Garments, Leather Bags, shoe upper, car seat covers etc...

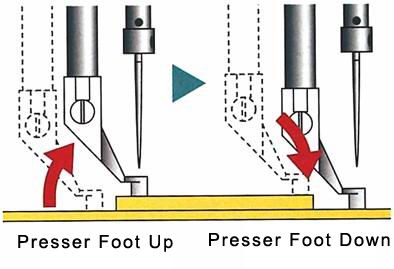

Electronically controls the stitching of any specific stitching pattern, easy to programme the specific sewing pattern, equipped with a walking presser foot and pattern input device.

Advantages of pattern sewing machine: No skill required, Saves time and labor’s cost, Uniform stitching of a particular part in all pieces, Cost effective, Increases productivity.

Working Video 1: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-star-179.html

Working Video 2: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-napkin-178.html

Working Video 3: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-sandals-192.html

Working Video 4: www.foxsew.com/company-video/programmable-electronic-pattern-sewing-machine-for-sandals-upper-195.html

Working Video 5: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-sandals-upper-191.html

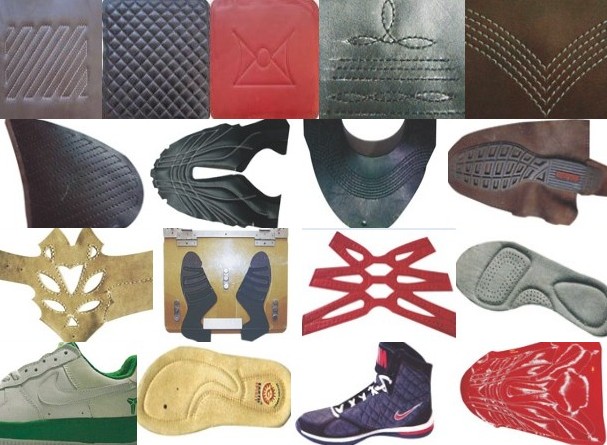

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

Characteristics:

Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook;

Liquid crystal touch operation pane;

Applying the same Mitsubishi controlling system;

Automatic thread trimmer;

Versatility of application.

Specification:

Model

FX2010  /  FX2516  /  FX3020

Sewing Area

200X100 mm /  250 X 160 mm / 300 X 200 mm

Thread size

polyester thread 0.3-1mm

Rotating hook

large rotating hook

Thread trimmer

Have

Stitch length

10mm

Pattern storage

below 691

Stepping foot lift

max.18mm

Max. stitches

8,000/pattern

Work holder height

standard 25mm(max.30mm)

Programmer

build in pattern programmer

Driving motor

direct drive servo motor

Needle

DP17×25
