Single Head Computerized Quilting Machine

  • Product Name:  Single Head Computerized Quilting Machine
  • Model NO.:  FX6-2
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Single Head Computerized Quilting Machine

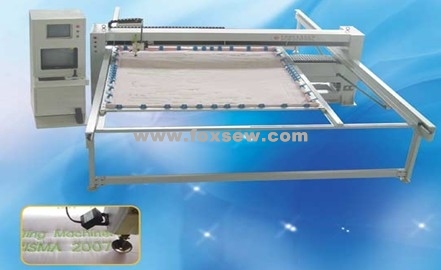

FOXSEW Single Head Computerized Quilting Machine

Working Video 1: www.foxsew.com/company-video/single-head-computerized-quilting-machine-198.html

Working Video 2: www.foxsew.com/company-video/computer-quilting-machine-204.html

Working Video 3: www.foxsew.com/company-video/single-head-computerized-quilting-machine-414.html

Uses: Quilt, coverlet, bedcover, sponge, mattress, leather and so on.

Details:

  • The head moves along X axis, and the frame moves along Y axis.
  • Work efficiency is double the single head quilting machine.
  • Each head can work independently.
  • Using special technology, the quilt can't be broken.
  • Using four servo motors.
  • Using good quality hardware and software, the right-angle, sharp-angle and circle can be well quilted.
  • 15" color monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
  • Using industrial mainboard, Floppy disk and USB disk can be employed to input patterns.
  • Use the world’s most popular Tajima(dst) format pattern design files.
  • Upper thread breakage detection system: when the thread breaks, machine would stop.
  • Quilting pattern storage: about 200 patterns kept in the computer, also can be read from floppy.
  • Zoom the pattern by 1 cm step.
  • Retreat requiting.
  • Automotive backtack at every start and stop during the pattern cycle.
    If shut off electricity, program would be kept in the computer.
  • Safety device: when an exception occurs, machine will stop automatically and the reason will be displayed on the screen.

Parameters:

Machine Area

Quilting Area

Rotary Hook

Needle

Stitch Length

Max Rotate Speed

Power

Power Consumption

4.2m*5.5m

2.8m*3.0m

Big Rotary Hook

MR3.0-5.0

2mm-8mm

2200RPM

Single-phase 220v 50hz

<2KW
