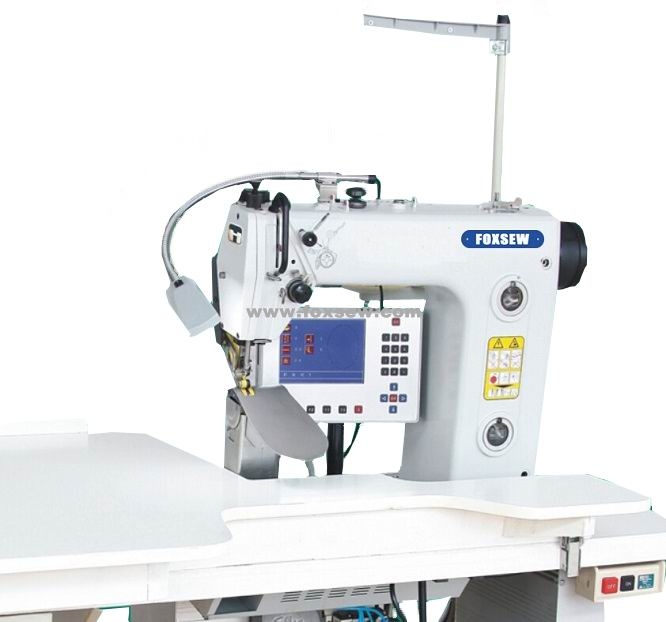

Programmed Automatic Sleeve Setting Machine

  • Product Name:  Programmed Automatic Sleeve Setting Machine
  • Model NO.:  FX-550A
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Programmed Automatic Sleeve Setting Machine

FOXSEW FX-550A Computerized Sleeve Setting Machine
Applications: Operations is one of the most important procedures of garment sewing. This machine is professional and efficient for setting sleeves, mainly used for men’s suits, overcoats, business wear, etc....
Feature:
Stitch Length 1.5mm - 5.5mm
Minimum stitch length adjustment 0.1mm
Left sleeve setting can be automatically imaged from the right
True Color TFT Screen, graphic display
100 setting programs storable
30 puckering value provided
Thread tension controlled by program. Two different setting programs can be connected in a series
Soft belt feed, material feeding neatly

FOXSEW FX-550A adopts double stepping motors to control the puckering value more precisely
FOXSEW FX-560A adopts the main belt and the auxiliary belt of the feeding, these two belts are driven by two stepping motors separately, which makes the speed of the auxiliary one can be re-adjustable, in this way, the puckering can be controlled more precisely and the operation is much more easily can conveniently.
Production Ability: Daily output is about 200-220 pcs in 8 hours working time.

Specifications:

Model NO.:  FX-550A
Sewing Speed:  4000 stitches per min
Needle Bar Stroke:  41 mm
Max. Presser Foot Lift:  8 mm
Number of Thread:  2
Automatic Thread Trimmer:  Yes
Air Pressure:  0.6 Mpa
Motor Power:  400 W
Needle Type: 134-35 DPX35 9#-16#
Needle Positioner:  Yes
Stitch Length:  1.5 - 5.5 mm
Hook:  Vertical Rotary Hook
Storage of Program:  100
