Product Details: Chainstitch Imitation Sleeve Buttonhole Machine

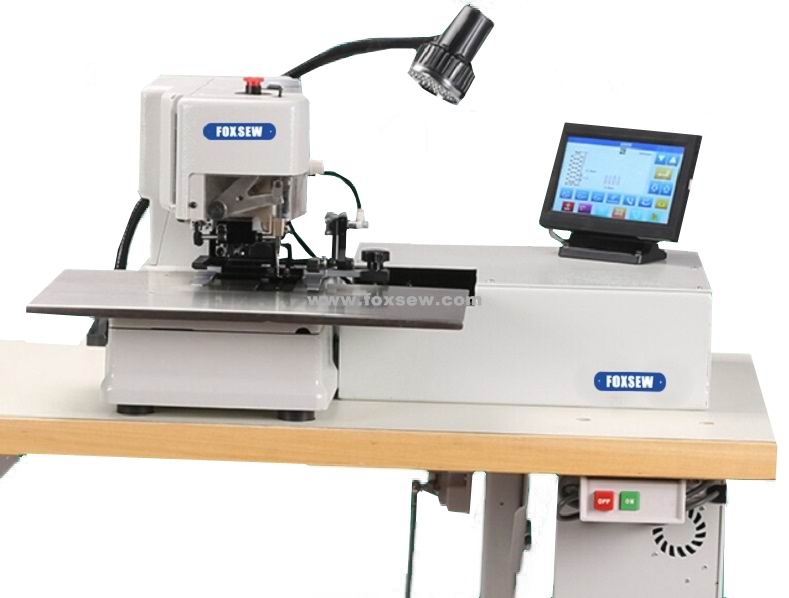

FOXSEW Computerized Chainstitch Imitation Sleeve Buttonhole Sewing Machine
High speed electronically controlled chainstitch imitation sleeve buttonhole machine designed for sewing purely decorative and non-functional buttonholes on jacket sleeves, the machine is designed primarily for decorative sewing of buttonholes using special threads such as silk thread. The chainstitch imitation sleeve buttonhole machine is programmable to sew automatically up to 8 imitation buttonholes at specific distances between each buttonhole. The machine clamps can be set to sew imitation buttonholes at an angle of 0 to 30 degree from a sleeve cuff. The chainstitch imitation sleeve buttonhole machine is offered with large touch screen display that uses easily understood symbols and graphics to simplify the adjustments. The optional laser lights mark the position of the sleeve at the beginning of sewing cycle. The high sewing speed up to 3800 spm and the short sewing cycle increase productivity and the single pedal electronic start reduces operator fatigue.
Stitches Size, length and distance are electronically controlled.
Through automatic feeder, set of number of eyelet and distance between the eyelets.
LED operation panel.
Embedded integrated control system.
DD Motor direct-drive.
Digitally re-adjustable the up stopping position.
Electronic Stop and Start Motion
Fully Enclosed Mechanism

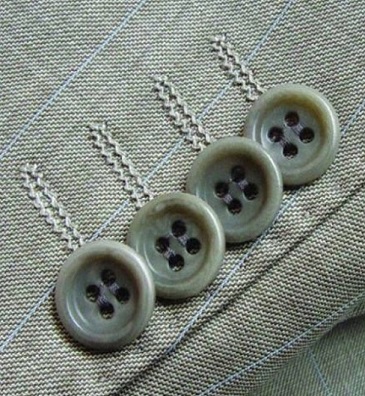

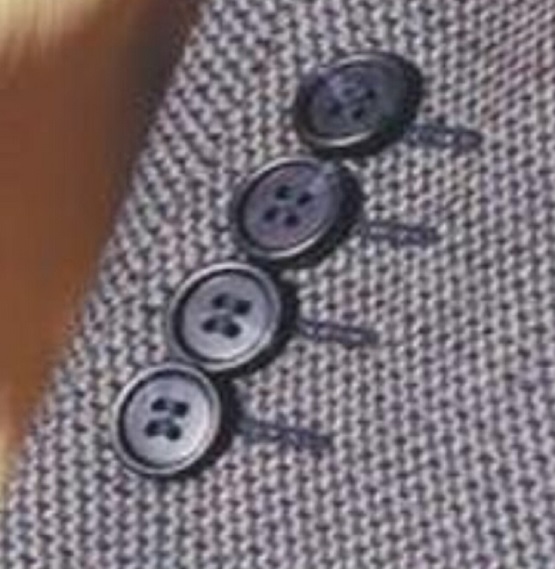

Decorative No-Cut Buttonhole
Productivity & Flexibility
Pneumatic Clamping, Cutting and Thread Trimming
Semi-Automatic Lubrication System and Oil Monitor
High Speed Sewing with Reduced Noise Level
|Sewing Speed:||1500 - 3500 r.p.m|
|Needle Type:||Eb750 10#-16#|
|Stitch Type:||Chain Stitch|
|Automatic Thread Trimmer:||Yes|
|Air Pressure:||0.6 Mpa|
|Motor Power:||750 W|
|Storage of Program:||20|
Product Images: Chainstitch Imitation Sleeve Buttonhole Machine
