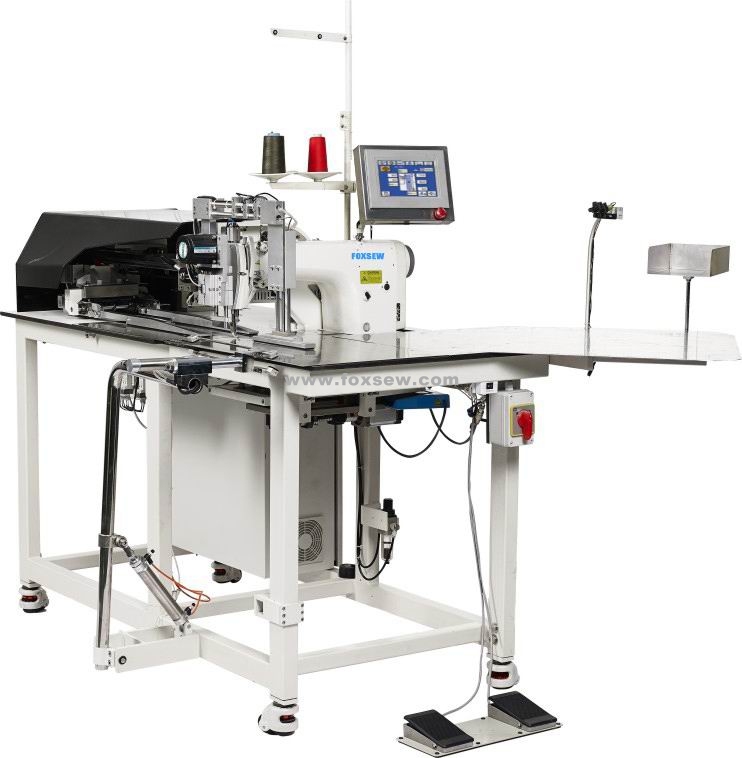

Automatic Placket Setting Sewing Machine

  • Product Name:  Automatic Placket Setting Sewing Machine
  • Model NO.:  FX-580A
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Placket Setting Sewing Machine

FOXSEW Automatic Placket Setting Sewing Machine, Automatic Placket Setting Machine Workstation.

Automatic Polo Shirt Front Placket Setter, Automatic POLO Shirt Placket Setting Sewing Machine

Working Video: www.foxsew.com/company-video/automatic-polo-shirt-front-pocket-setter-sewing-machine-unit-3000.html

This machine adopts movable machine head of global innvovative design, sewing and cutting the placket can be done in one progress. So it can reduce the wrinkle in the bottom of Polo, especially for sewing the visible, invisible and ornamental T-shirt fronts. It can sew the cloth with or without strip. It can select to be matched with angle knife and auto-exchange feeding function. The capacity can reach 2000-2800pcs per eight hours.
FX-580A-01 is a single needle single blade computerized placket setting sewing machine and it's mainly used for sewing single side placket, also name as wrap over front, plain front button panel.
FX-580A-02 is a single needle double blade computerized placket setting sewing machine and can convenitly switch between single needle and double blade, therefore, it can be used for sewing single side placket, also named as wrap over front, plain front button panel. and both side placket, also called as double flanged bobbin, visible flanged bobbin or Polo flanged bobbin, with diversified functions.

Specifications:

Model NO.:  FX-580A
Sewing Speed:  3600 r.p.m
Needle Type:  DPx1 #11-#14
Stitch Length:  1-5 mm
Sewing Width:  1-60 mm
Sewing Length:  1-360 mm
Packing Size:  1600x800x1410 mm
Weight:  260 KGS
