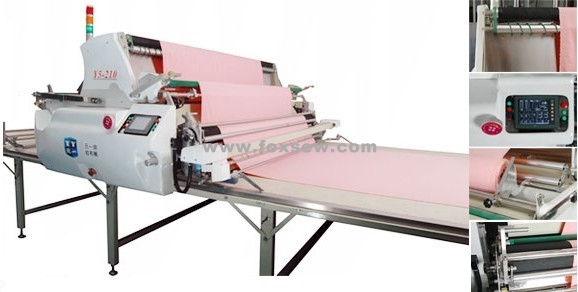

Automatic Spreading Machine for Knit and Woven

  • Product Name:  Automatic Spreading Machine for Knit and Woven
  • Model NO.:  FX-Y6
  • Origin:  Zhejiang,China
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Spreading Machine for Knit and Woven

Working Video: http://www.foxsew.com/company-video/semi-automatic-spreading-machine-11.html

FX-Y6 series of Full automatic spreading machine, spread any kind of fabric for fashion apparel, furniture, car industry

and technical textiles. Available different devices to adapt machine to different kind of production, knit and woven fabric,

 open and tubular, book folded or roll.

FOXSEW spreader, easy to learn, easy to operate, easy to maintain and reasonable quality and price. The spreading

specialist for fabric can rolls up to 100kg.

Equipped Devices:

Cradle with conveyor belt

The great peculiarity of FOXSEW cradle system consists in the roll being supported by one wide piece of conveyor belt

only, rather than many parallel narrow belts. This allows better quality result also with very light fabrics and even in case

of irregular side edges.

Equipped with Robotic Technology

Robotic technology: fitted as standard PLC (Mitsubishi), which allows making adjustment of many characters. Avoid the

 little flexibility it has machines which work with ready made electronic charts and the impossibility to replace in local

places.

Touch screen

Touch screen: allows adjusting the programming to your concrete production. The screen is placed in a very comfortable

place where you can see all instructions while the spreading process. With single hand, you can give all instructions to

the machine, having the other hand free for checking fabric.

Encoder:

Machine drives by encoder: With under table chain allows programming any length of the marker and reaching perfect

ends, as well as spread in any place on the table.

Cutting Device

Adjustable in speed according to the material we have to work with.

Adjustable in cutting length, Able to cut paper under the marker.

Fitted with IFS (Impact free system) low acceleration on the cut beginning, and faster acceleration, avoid the wrinkles

while cutting process.



Security Rules

CEE, security rules, emergency stop if there is a supplier tension failure, if there is an engage of the cutting device.

 Also machine goes with SAFETY SENSORS, to avoid any crush with a operator worker.

Technical Characteristics:

l         Cradle with conveyor belt

l         Easy loading and unloading rolls

l         Automatic threading and rewinding fabric

l         Ability to program all steps in a spread

l         Adjustable edge side alignment by double sensor

l         Machine drives by encoder

l         Automatic high detector sensor

l         Robotic technology

l         Automatic start checks control when machine is switched on.

l         Adjustable spread speed from 0 to 80 m/min.

l         Programming feeding

l         Digital touch screen

l         Automatic cutting device

l         Four-wheel drive (2×2)

l         Device to spread fabrics roll in reverse way

l        Self-adjusting brakes ramp according to speed of machine and programmed acceleration

l         Security sensors emergency stop

         Spreading any kind of fabric: Knitting fabric (open fabric, tubular, roll, book folded), and woven fabric.

l         Any way of spreading: face up with clamps, face up without clamps, face down, zigzag, cutting zigzag

                                                          Characteristics & Power

Material Width

1.6, 1.8, 2.0, 2.2, 2.5,3.0 m

Roll weight(Maximum)

100kg

Roll diameter(Maximum)

60cm

Spreading height

25cm

Maximum speed per minute

80m

Operator side

Right(Normal)/Left

Voltage

Single phase, 220V/50Hz

Power supply

1.7kw
