Automatic Pattern Sewing Machine for Mops Head

  • Product Name:  Automatic Pattern Sewing Machine for Mops Head
  • Model NO.:  FX2516M
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Pattern Sewing Machine for Mops Head

FOXSEW Automatic Pattern Sewing Machine for Mops, Mops Head, Mops Head Packing.

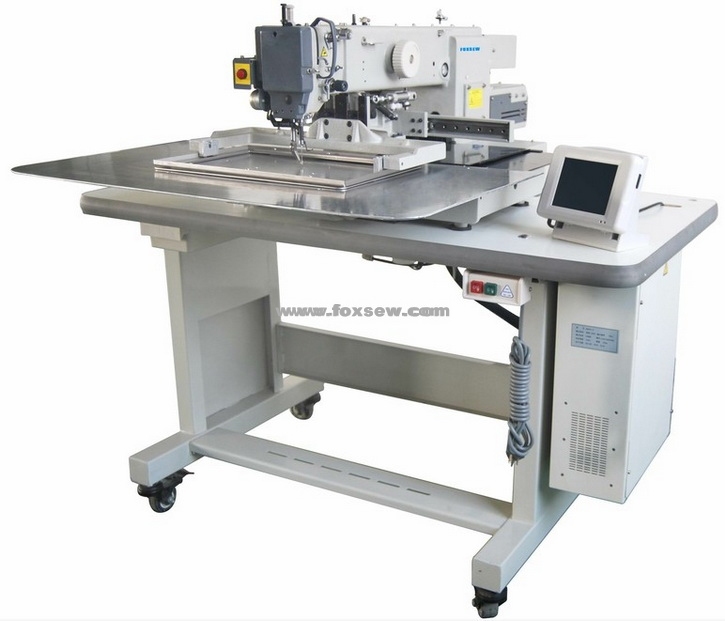

Automatic Mops Head Pattern Sewing Machine FOXSEW FX2516M

Working Video-1: www.foxsew.com/company-video/automatic-mops-head-pattern-sewing-machine-2940.html

Working Video-2: www.foxsew.com/company-video/automatic-mop-head-pattern-stitching-sewing-machine-2939.html

Working Video-3: www.foxsew.com/company-video/automatic-mop-head-pattern-sewing-machine-2938.html

Working Video-4: www.foxsew.com/company-video/automatic-mops-head-pattern-sewing-machine-1515.html

Working Video-5: www.foxsew.com/company-video/automatic-mops-head-sewing-machine-1514.html

Working Video-6: www.foxsew.com/company-video/pattern-sewing-machine-for-mops-head-108.html

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.

Characteristics:

Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook;

Liquid crystal touch operation pane;

Applying the same Mitsubishi controlling system;

Automatic thread trimmer;

Versatility of application.

Specification:

Model

FX2516M

Sewing Area

250 X 160 MM

Thread Size

Polyester Thread 0.3-1 mm

Rotating Hook

Large Rotating Hook

Thread Trimmer

Have

Stitch Length

100 mm

Pattern Storage

Below 691

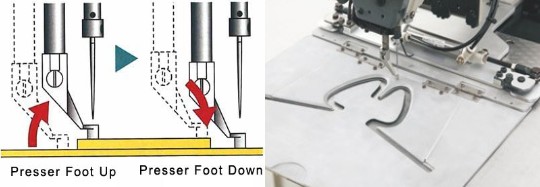

Stepping Foot Lift

Max.18mm

Max. Stitches

8000/Pattern

Work Holder Height

Standard 25mm (Max. 30mm)

Programmer

Build in Pattern Programmer

Driving Motor

Direct Drive Servo Motor

Needle

DP17X25
