Programmable Automatic Pattern Sewing Machine

  • Product Name:  Programmable Automatic Pattern Sewing Machine
  • Model NO.:  FX3020G
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Programmable Automatic Pattern Sewing Machine

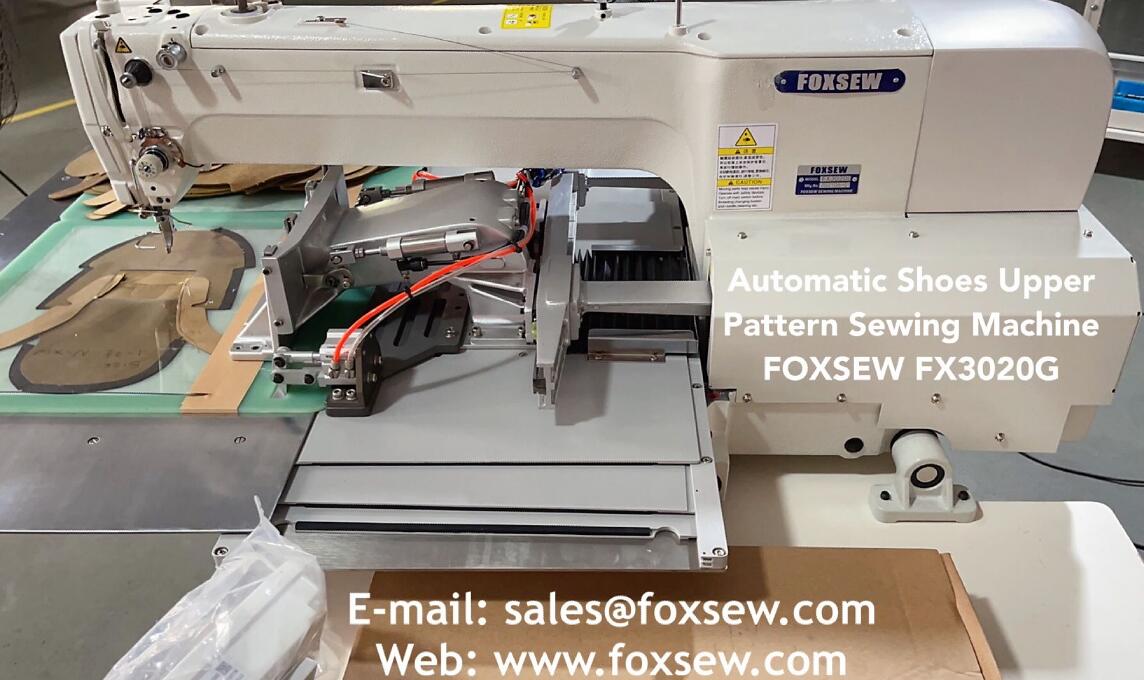

FOXSEW Programmable Automatic Electronic Pattern Sewing Machine

Touch screen panel, Button panesl, Oil-free needle bar, Clean sewing, Simple operation, easy &accurate positioning, Unique upper thread catching device, New pulling thread-slacking device (National Patent). It is suitable for shoes ,bags and cuff of t-shirts, which improves productivity by 100% -300%.

Applied for layers of combined model plates in various kinds. Clamping and sewing simultaneously, the machine reduces the time wasted on waiting and improves efficiency. Automatic positioning and model plate scanning before start. Successive and automatic program changing. Sewing layers of combined patterns in same fabric, this device reduces the producing period by using same table and stand.

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label AND badge attaching, shoe applications and many more special applications.

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

Characteristics: Max. stitching speed is 2,700rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook; Liquid crystal touch operation pane; Applying the same Mitsubishi controlling system; Automatic thread trimmer; Versatility of application.

 Specification:

Model NO.:  FX3020G
Max. Sewing Speed:  2700r.p.m
Max. Sewing Area:  300x200mm
Stitch Length:  0.05-12.7mm
Max. Stitch Amout:  20000 needles/pattern
Storage Amount of Stitches:  500000 stitch can be stored
Presser Foot Drive:  Pneumatic
Presser Foot Lift:  Max. 30mm
Big Foot Presser Method:  All-in-one presser foot
Rising Amout of intermittent foot:  22mm
Thread Wiper:  Yes
Cutting Device:  Yes
Air Presser:  0.5Mpa, 1.8L/min
Servo Motor:  750W
