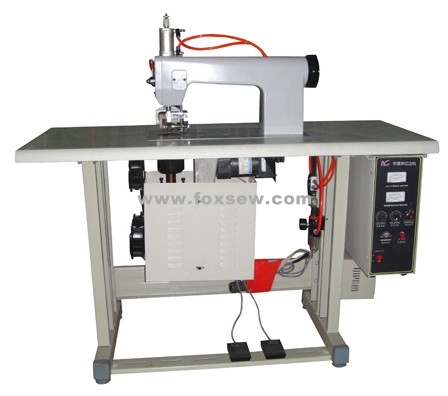

Ultrasonic Lace Sewing Machine

  • Product Name:  Ultrasonic Lace Sewing Machine
  • Model NO.:  FX-80U
  • Origin:  Zhejiang, China
  • Brand Name:  FOXSEW
  • Product Details:  Ultrasonic Lace Sewing Machine

Used for : Bag making machine, Handle loop bag making machine, non-woven bags making.

Working Video-1: www.foxsew.com/company-video/ultrasonic-lace-machine-for-medical-gowns-2220.html

Working Video-2: www.foxsew.com/company-video/ultrasonic-lace-sewing-machine-for-medical-gowns-2222.html

Working Video-3: www.foxsew.com/company-video/ultrasonic-cutting-and-sealing-lace-sewing-machine-2241.html

Working Video-4: www.foxsew.com/company-video/ultrasonic-sewing-machine-for-medical-gowns-2239.html

Working Video-5: www.foxsew.com/company-video/ultrasonic-sewing-machine-2240.html

Technical Variables
1.Imported piezoelectric chip, with strong and stable output

2.Pattern wheel made of special alloy steel, wear-resistant and long-lived welding head
3.Removable lace mold, eccentric adjustment, high flexibility and speed, high horizontality
4.Fast operating speed, excellent effects and quality guarantee
5.Assembled from full set of imported components, offering stable performance

Functional description:
1.Processing with ultrasonic and special steel wheel, without damaging fabric edge or producing burrs
2.Easy replacement of pattern wheel with pattern depending on customer needs
3.Manufacturing without preheating, capable of continuous operation
4.Sewing: Various fabrics can be sewed up directly for waterproofing with ultrasonic without needle and thread.
5.Lace: Various leathers/fabrics can be pressed into any pattern with ultrasonic without burr.
6.Gold stamping: Fast and effective gold stamping can be given to various leathers/fabrics with ultrasonic.
7.Bound edge: Bound edge treatment can be given to various leathers/fabrics with ultrasonic.

Specifications:

Power

110/220V 50/60HZ

Power Input

1500W-2500W (Adjustable)

Power Output

20KHZ

Speed

0-15 m/min

Effective Width

90mm

Weight

180KGS

Dimension

1300mmx650mmx1500mm
