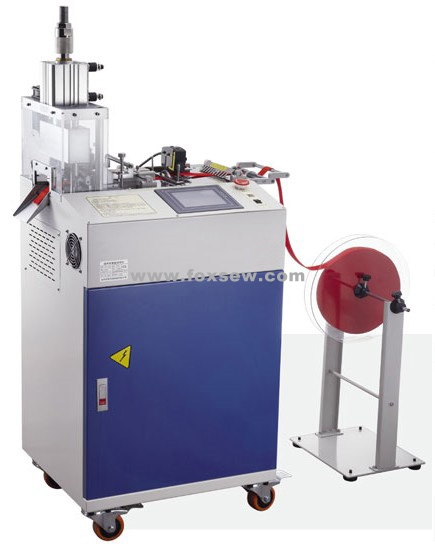

Ultrasonic Tape Cutting Machine (Multi Function)

  • Product Name:  Ultrasonic Tape Cutting Machine (Multi Function)
  • Model NO.:  FX-2200
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Ultrasonic Tape Cutting Machine (Multi Function)

FOXSEW Multi Function Ultrasonic Tape Cutting Machine, Ultrasonic Webbing Cutting Machine

Working Video 1: www.foxsew.com/company-video/ultrasonic-tape-cutting-machine-with-punching-hole-505.html

Working Video 2: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-and-hole-punching-machine-438.html

Working Video 3: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-machine-with-rotating-knife-444.html

Working Video 4: www.foxsew.com/company-video/ultrasonic-cutting-and-hole-punching-machine-514.html

Working Video 5: www.foxsew.com/company-video/multi-function-ultrasonic-tape-cutting-machine-439.html

Working Video 6: www.foxsew.com/company-video/multi-function-ultrasonic-rotating-knife-cutting-machine-680.html

Working Video 7: www.foxsew.com/company-video/multi-function-ultrasonic-webbing-cutting-machine-840.html

Working Video 8: www.foxsew.com/company-video/ultrasonic-safety-belt-cutting-machine-841.html

Ultrasonic cutting, large touch screen, sharing platform. Varity shapes.

Special features:
Ultrasonic cutting: Blade is not black, ghost edge and feel comfortable. The powerful transducer cut faster.
Accurate: The accurate cut of labels by using optronics sensor.

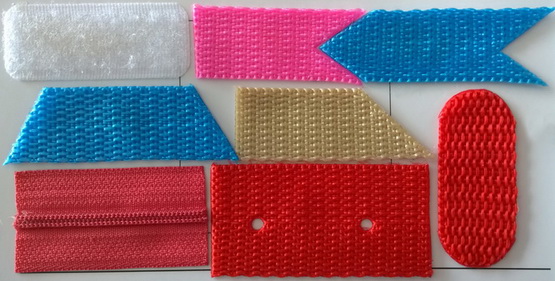

Varity shapes: The special technique of sharing platform can carry variety shapes of knife molds and replace mold quickly.
Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.
Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memory all cuttings for your convenience.
Applications:
Suitable for Woven Belts, Velcro, Shoelace, Zipper, Webbings, Labels, Safety Belts, Lifting Slings, And Kinds of Leather Belts. etc.

Specifications:

Model

FX-2200

Cutting Length

25-99999 mm

Cutting Speed

120 p/min

Max.Cutting Width

100 mm

Max.Cutting Angle

45 degree

Sound Frequency

20K HZ

Recommended Pressure

0.4-0.7 Mpa

Voltage

110V/220V

Power Rating

1.5 KW

Max. Power

1.7 KW

Weight

155 KGS

Packing Size

700X610X1450 mm
