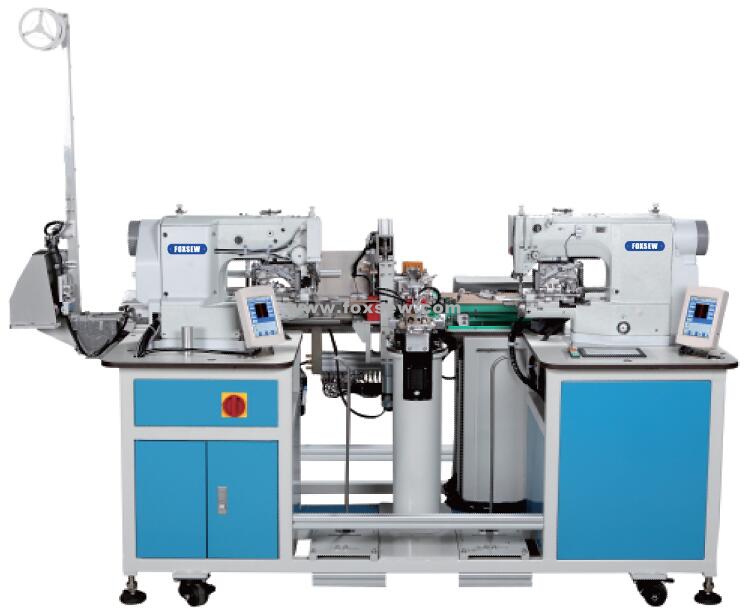

Automatic Elastic Joining Sewing Machine with Double Heads

  • Product Name:  Automatic Elastic Joining Sewing Machine with Double Heads
  • Model NO.:  FX2010G-DHE
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Elastic Joining Sewing Machine with Double Heads

Double Heads Automatic Elastic Bands Joint Sewing Machine Unit

FOXSEW Double Position Elastic Joining Machine realizes full automatic operation including automatic selection,
automatic cut, automatic joining, automatic collection and automatic mark.

Working Video: www.foxsew.com/company-video/double-head-automatic-elastic-joint-sewing-machine-unit-1394.html

One operator is able to operate multi machines,1 machine can process 7000-8000 elastics per 8 hours.

Joining method: Flat joining and overlap joining.
Joining Length: 120mm-999mm Width :10mm-60mm
Feeding wheel: Use needle wheel material selection method, make sure the error of length is inside 1mm.
Mental detecting method: the machine will cut automatically when encounter mental joint in cycling operation
Cutting Device: Using leading ultra-sonic device inside China to enable neat cutting.
Edge stitching: It will correct the deviation at the joining place to realize perfect stitch.

Specifications:

Model NO.:  FX2010G-DHE
Sewing Speed:  2700 r.p.m
Machine's Sewing Area:  100x70 mm
Stitch Length:  0.05-12.7 mm
Presser foot lift:  25 mm
Power:  550W Servo Motor
