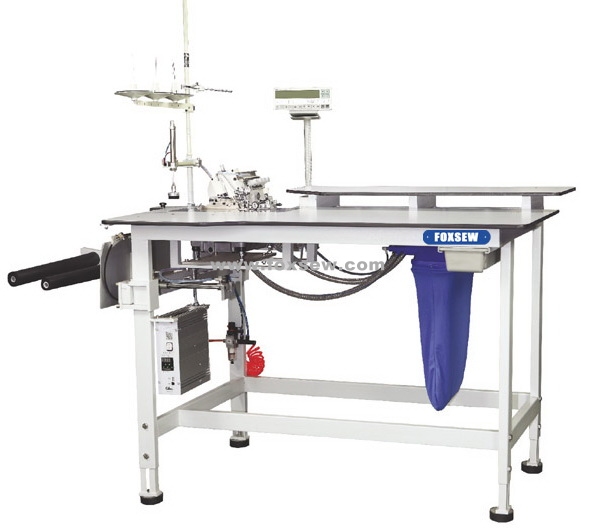

Automatic Serging Sewing Machine Unit

  • Product Name:  Automatic Serging Sewing Machine Unit
  • Model NO.:  FX899UT-AF
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Serging Sewing Machine Unit

FOXSEW Automatic Serging Sewing Machine Unit

This machine is a compact serging unit for serging Skirts and Trousers panels without knee lining and small parts.
The easy-to-operate working process ensures superb production potential at short training periods.
The high work speed of the unit allows a rapid, overlapping operating sequence.

FOXSEW Automatic Serging Unit for Trousers, Skirts and Jeans, etc...
Efficiency: Daily output (8 hours)
Front trouser : 600 pieces/8 hours
Back trouser: 600 pieces/8 hours
8 seams (front trouser and 2 preseams): 560 pieces/8 hours
8 seams (back trouser and 2 preseams): 560 pieces/8 hours
9 seams (front trouser and 3 preseams): 500 pieces/8 hours
9 seams (back trouser and 3 preseams): 500 pieces/8 hours

Features:
The preseams: hem, fly curve and seat curve can be serged manually at the sewing head. The side seams and inseams are sewn fully automatically.
Height adjustment contour guide with quick adjustment.
The work piece is controlled by the contour guide, sewn and stacked.
Automatic chain cutting and lint cutting without affecting sewing material.
Germany Siemens control system and screen.
Taiwan Hohsing direct drive servo motor and control box.

Specifications:

Model NO.:  FX899UT-AF
Max. Sewing Speed:  7500 r.p.m
Stitch Length:  0-4 mm
Seaming Width:  0-6 mm
Presser foot lift:  0-5 mm
Power:  750W
Weight:  125 KGS
Packing Size:  150x90x150 CM
