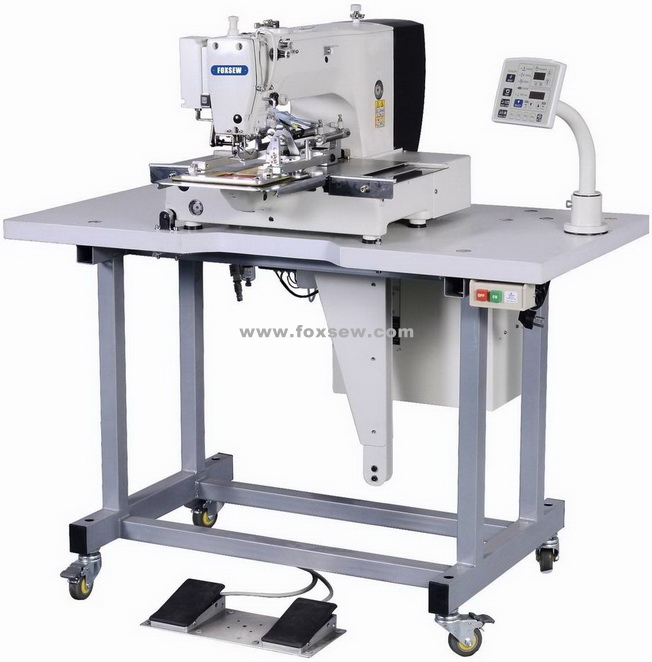

Automatic Label Attaching Pattern Sewing Machine

  • Product Name:  Automatic Label Attaching Pattern Sewing Machine
  • Model NO.:  FX2210-LA
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Label Attaching Pattern Sewing Machine

FOXSEW Programmable Automatic Label Attaching Pattern Sewing Machine
Programmable Automatic Label Attaching Pattern Sewing Machine with Side-Sliding Presser Foot
Programmable Automatic Jeans Label Attaching Pattern Sewing Machine with Fliping Clamp
Programmable Automatic Label Attaching Pattern Sewing Machine with Zigzag Stitch Patterns

Working Video-1: www.foxsew.com/company-video/automatic-label-attaching-pattern-sewer-with-side-sliding-presser-foot-1130.html

Working Video-2: www.foxsew.com/company-video/automatic-label-attaching-sewing-machine-with-fliping-presser-foot-1129.html

Working Video-3: www.foxsew.com/company-video/automatic-label-sewing-machine-with-side-sliding-presser-foot-2689.html

Working Video-4: www.foxsew.com/company-video/automatic-label-attaching-pattern-sewing-machine-2690.html

Working Video-5: www.foxsew.com/company-video/automatic-jeans-leather-label-attaching-sewing-machine-1128.html

Working Video-6: www.foxsew.com/company-video/automatic-label-attaching-sewing-machine-with-side-sliding-presser-foot-894.html

Working Video-7: www.foxsew.com/company-video/automatic-label-attaching-sewing-machine-with-fliping-clamp-893.html

Efficiency: The fastest way to sew labels. The machine can sew 900 labels per hour (depending on fabrics and styles).
Features: Start and end point is on the middle-top from the label. With the help of special presser foot and molds, the labels can be attached on material precisely. The max. sewing size is 220x100mm. Start and end point freely programmable. The clamp can make sliding movement during sewing. The sliding presser device can hold the material tightly to avoid material moving during sewing. The max. sewing area is 220 x 100mm.
Applications: This machine is used to set different size leather label, brand label, warning label on jeans, bags, car seats, etc...
1. Programmable Patterns Making  2. Special design of look, Specially for attaching label on jeans 3. Clamp mould made and changed is easily 4. Inner clamp foot, operate easily and safely.

Specifications:

Model NO.:  FX2210-LA
Sewing Speed:  2700 r.p.m
Production:  900 labels per hour
Stitch Length:  0.05-12.7mm
Work Clamp Height:  Max. 30 mm
Power:  1.2 kw
Packing Size:  123x83x123 CM
Weight:  180 KGS
