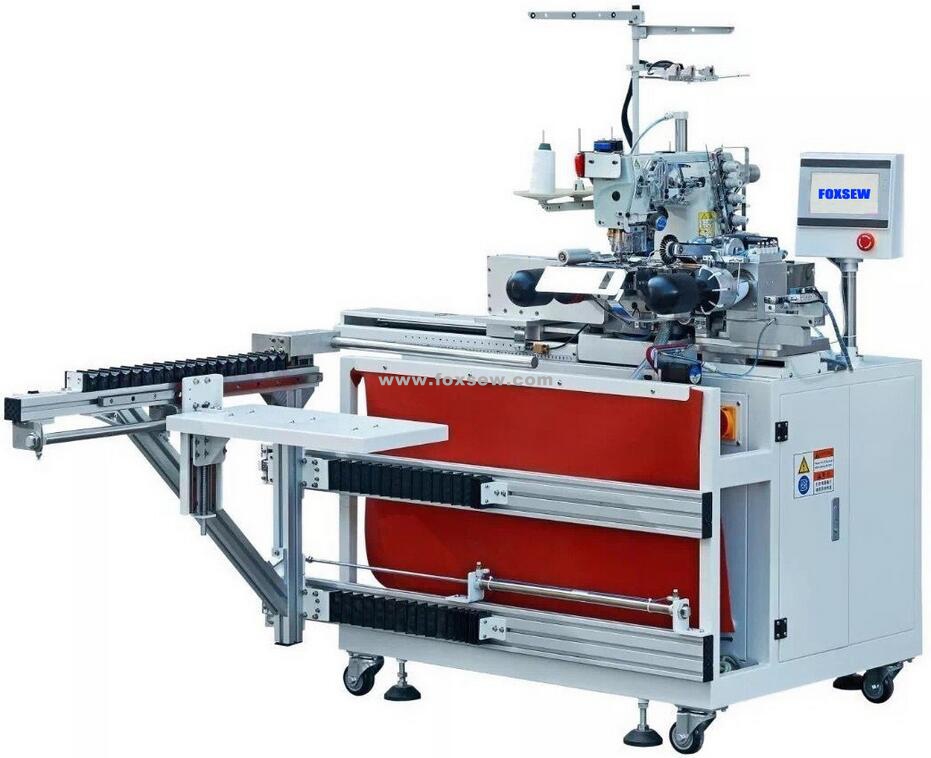

Automatic Coverstitch Bottom Hemmer

  • Product Name:  Automatic Coverstitch Bottom Hemmer
  • Model NO.:  FX-AT300
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Coverstitch Bottom Hemmer

FOXSEW Automatic Coverstitch Bottom Hemmer Sewing Machine Unit, Automatic Coverstitch Bottom Hemming Sewing Machine Workstation.
Applications for Shirts may be tubular or with side seams.

Working Video-1: www.foxsew.com/company-video/automatic-coverstitch-bottom-hemmer-1447.html

Working Video-2: www.foxsew.com/company-video/automatic-coverstitch-sports-shirts-bottom-hemmer-1464.html

Working Video-3: www.foxsew.com/company-video/automatic-shirts-bottom-hemming-sewing-station-1463.html

Working Video-4: www.foxsew.com/company-video/automatic-sports-shirts-bottom-hemmer-station-1462.html

Working Video-5: www.foxsew.com/company-video/automatic-coverstitch-shirts-bottom-hemmer-1460.html

Working Video-6: www.foxsew.com/company-video/automatic-shirts-bottom-hemming-machine-workstation-1461.html

Working Video-7: www.foxsew.com/company-video/automatic-coverstitch-bottom-hemming-sewing-unit-1458.html

Patented Serial Bus Control System, Shirt may be hemmed first or last operation, Tandem operation, Automatic size control, Perfectly aligned oversew, Electronic active edge guiding system, 100% cotton thread max RPM.

An electronically controlled workstation for hemming circlular shirts bottoms. This Sewing Unit incorporates a two needle coverstitch sewing machine head with an optional left-hand knife with elecro-pneumatic expansion rollers for size control, a state of the art edge guiding system, a fabric folding system, and an automatic stacker.


A tubular or side-seamed body is loaded over the expansion rollers. When loaded, the rollers expand to the proper tension, indexes the shirt under the presser foot, and the sewing cycle is initiated. The operator is free to load a second station. The finished hem is sensed and perfectly oversewn (with stitch-condensing if desired). The threads are trimmed and the garment is automatically stacked.
