Big Bag Making Sewing Machine

  • Product Name:  Big Bag Making Sewing Machine
  • Model NO.:  FX-K80700
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Big Bag Making Sewing Machine

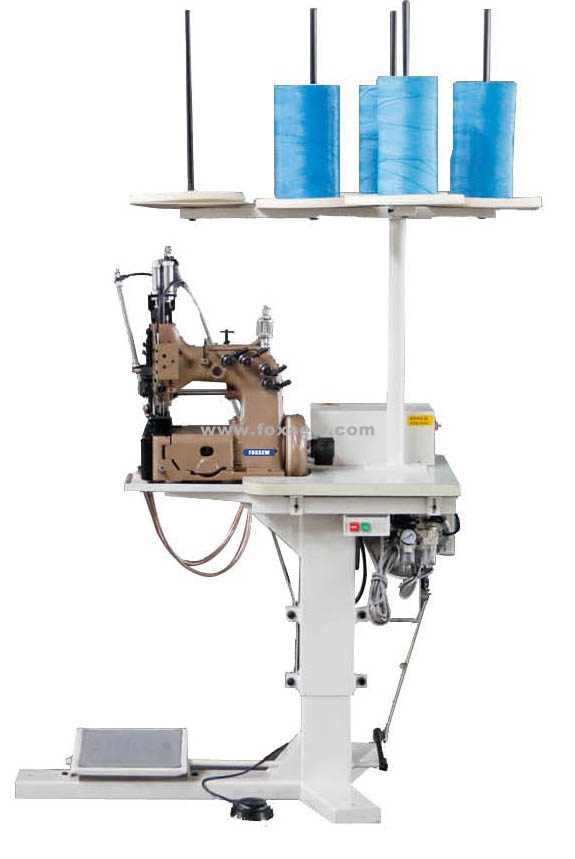

FOXSEW FX-K80700 Big Bag and Container Bag Making Machine, Double Needle Chain Stitch FIBC Big Bag Making Sewing Machine

FIBC 2-Needle Chainstitch Container Bag Sewing Machine, Two Needle Chain Stitch Big Bag Making Sewing Machine

Working Video-1: www.foxsew.com/company-video/big-bag-container-bag-making-sewing-machine-1123.html

Working Video-2: www.foxsew.com/company-video/fibc-big-bag-sewing-machine-1042.html

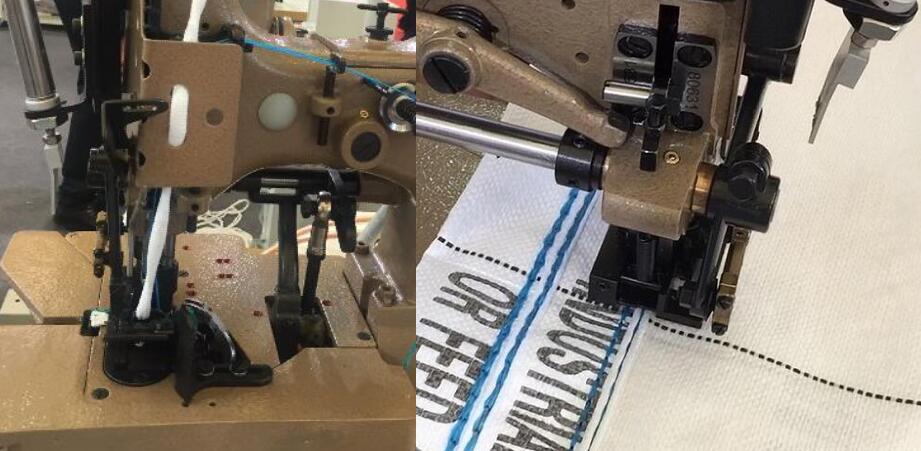

Features: Two independent rows double chain stitch and guides for polypropylene filler cord from the top and/or from below for sealing the needle punctures of the left needle; Upper and lower feed with pneumatic operated presser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle; Capacity up to 18mm, special for heavy duty seaming on big bag; Needle gauge 7.2mm.
Two needle independent row, double locked stitch machine for even matched seaming of Big Bag or container bags and simultaneously attaching belt band. Its design and pedestal installation makes it especially suitable for attaching filling and discharging tubes and inserting top covers. Guides for filler cord from the top or from below for sealing the needle punctures of the left needle.
This Big Bag and Container bag making sewing machine is interchangeable with Union Special 80700 series SINGLE NEEDLE AND TWO NEEDLE INDEPENDENT ROWS DOUBLE LOCKED STITCH MACHINES with Lower and Upper Feed.

Specifications:

Model NO.:  FX-K80700
Stitch Type:  SSa-2
Needle Distance:  7.2mm (18ga)
Sewing Thickness:  Max. 18mm
Standard Needle Type:  9848G300/120
Stitch Length:  6-12mm
Standard Stitch Length:  10mm
Sewing Speed:  1400 r.p.m
Motor:  Servo Motor 750W
Cutter:  Heating Cutter
Weight:  135 KGS
Volume:  0.8CBM
