Needle Detector

  • Product Name:  Needle Detector
  • Model NO.:  FX-K688
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Needle Detector

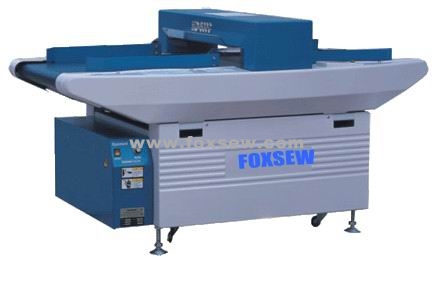

FOXSEW Needle Detector Machine

Working Video: www.foxsew.com/company-video/needle-metal-detector-with-flip-conveyor-781.html

Details:

1.It makes the outside shape beautiful and makes the weight of the machine light to adopt the ABS shell of good quality.
2.It can effectively provide the number of the qualified, unqualified and the total of the detection objects. Needle detector, check deposit machine
3.It can detect the thick or the super thin object separately.
4.It's equipped with the protection device to make the belt not leaving the normal track forever.
5.It's equipped with the infrared device, which can start the machine automatically, it's not necessary to press the "start" button frequently.
6.It's equipped with environmental protection design concept to save the electricity automatically.
7.It's equipped with the monitor, which can observer the machine's operation;
8.It's equipped with the location indicator, which can find the exact location of the broken needle.
9.It's equipped with the auto-alarm and auto-return device. Needle detector, check deposit machine
10.It's featured by powerful anti-magnetic disturbance capability, high reliability and sensitivity.

 Specifications:

Model NO.

FX-K688

Detecting adjustment

Stepless adjustment

Detecting width

600mm / 800mm / 1000mm (customized)

Detecting height

100mm / 150mm / 200mm (customized)

Alarm method

Buzzer and the belt shops

Belt speed

(appr.)30 m/min

Power supply

200V,50Hz,Single phase

Rated output

(appr.)110W

Outline dimension

1050(L)*1650(W)*900(H)mm

Weight

(appr.)190kg
