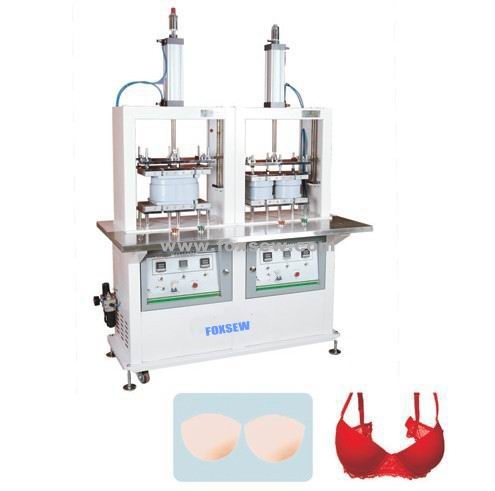

Bra Cup Molding Machine

  • Product Name:  Bra Cup Molding Machine
  • Model NO.:  FX-168 Series
  • Origin:  Zhejiang,China
  • Brand Name:  FOXSEW
  • Product Details:  Bra Cup Molding Machine

Function: It is mainly used for molding different foam bra cups and other similar products..

Features:

1. It is delicate and exquisite in appearance and compact in structure. The upper moulds can be easily coincided with the lower moulds so as to operate steadily.

2. Equipped with the internal heating pipes, imported thermostat and heat insulator materials to control the temperature. The machine can show the heating time automatically and reduce the power-consumption.

3. It adopts independent thermostatic control in both sides and upper and lower bi-directional driver, which can balance the temperature of left and right moulds and make effective use of the whole space, overcoming the chromatism defect caused by the difference in temperature.

Technical parameter:

1. Power supply/power: 220V/8KW

2. Specification of the electrothermal tube : Φ12×220mm×500W/200V

3. Dimension of  the mould table: 450mm×220mm

4. Dimension of the machine: 1450mm×650mm×1850mm

5. Suitable material: foam or fabric materials for bras and other garments.

6. Suitable moulds: moulds for foam bra cup and fabric cup

7. Weight:350KG
