Home > Pattern Sewing Machine > Programmable Electronic Pattern Sewing Machine
Sewing Machine,Cutting Machine ,Garment Machinery,

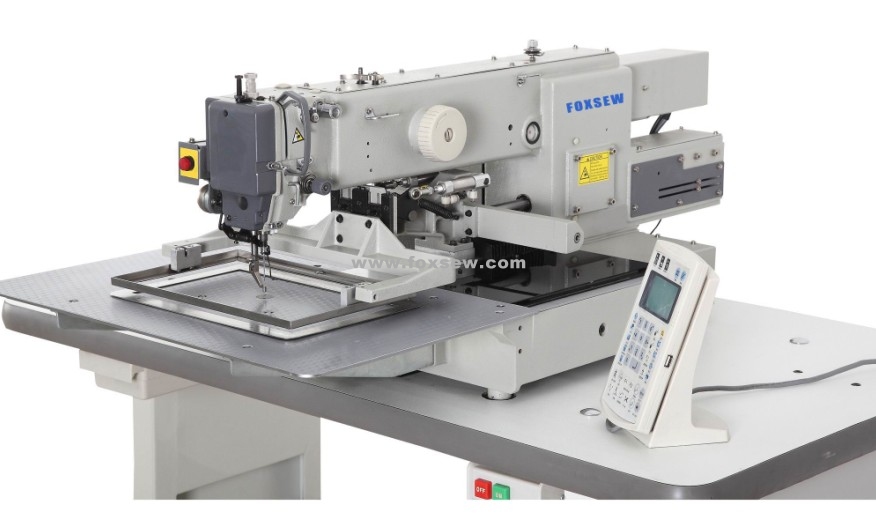

Programmable Electronic Pattern Sewing Machine

  • Product Name:  Programmable Electronic Pattern Sewing Machine
  • Model NO.:  FX2010
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Programmable Electronic Pattern Sewing Machine

FOXSEW Programmable Electronic Pattern Sewing Machine

Working Video 1: www.foxsew.com/company-video/automatic-label-attaching-pattern-sewing-machine-821.html

Working Video 2: www.foxsew.com/company-video/automatic-pattern-sewing-machine-for-sandals-upper-185.html

Working Video 3: www.foxsew.com/company-video/programmable-pattern-sewing-machine-for-sandals-upper-191.html

Working Video 4: www.foxsew.com/company-video/pattern-sewing-machine-for-heavy-duty-webbings-210.html

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

Characteristics:

Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook;

Liquid crystal touch operation pane;

Applying the same Mitsubishi controlling system;

Automatic thread trimmer;

Versatility of application.

Specification:

Model

FX2010

Sewing Area

200X100 mm

Thread size

polyester thread 0.3-1mm

Rotating hook

large rotating hook

Thread trimmer

Have

Stitch length

10mm

Pattern storage

below 691

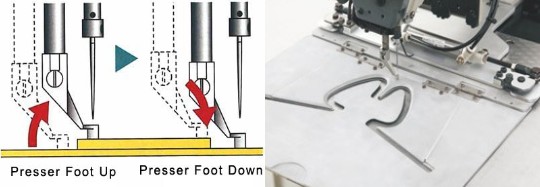

Stepping foot lift

max.18mm

Max. stitches

8,000/pattern

Work holder height

standard 25mm(max.30mm)

Programmer

build in pattern programmer

Driving motor

direct drive servo motor

Needle

DP17×25
