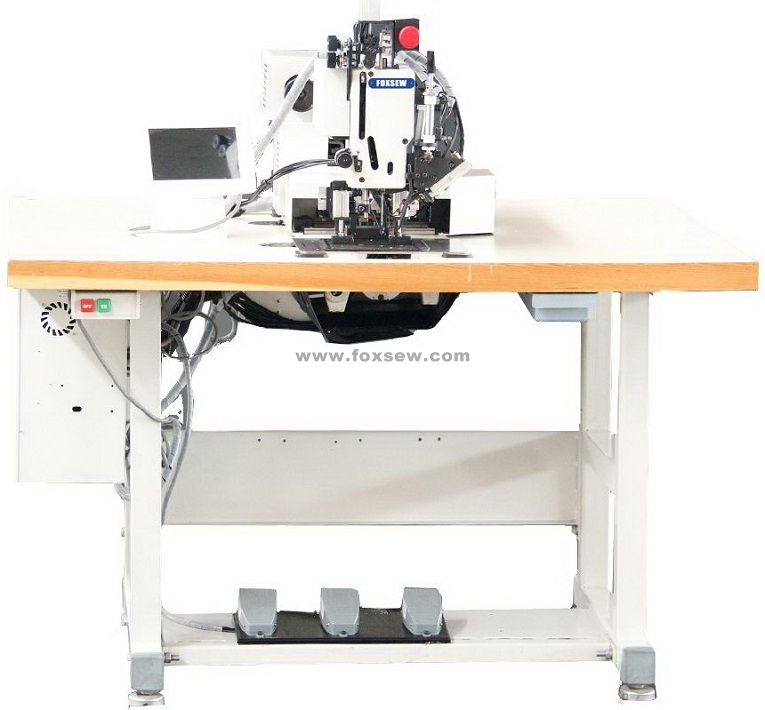

Programmable Extra Heavy Duty Thick Thread Automatic Pattern Sewing Machine with Large Shuttle Hook

  • Product Name:  Programmable Extra Heavy Duty Thick Thread Automatic Pattern Sewing Machine with Large Shuttle Hook
  • Model NO.:  FX1310H
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Programmable Extra Heavy Duty Thick Thread Automatic Pattern Sewing Machine with Large Shuttle Hook

FOXSEW Extra Heavy Duty Thick Thread Programmable Electronic Pattern Sewing Machine for heavy duty materials

Application: lifting slings, rigging products, safety belts, military webbing, cargo lashing strap, hoists, safety harness, crane slings, industrial safety products, textile slings (reinforcement stitch or reinforced Eye), lanyards, saddles, sails, parachutes and furniture upholstery, Bar tacking for climbing ropes, safety ropes, sterling rope, cords, yacht ropes, ropes, braid ropes etc...

Working Video-1: www.foxsew.com/company-video/heavy-duty-automatic-webbing-sling-sewing-machine-with-hot-knife-thread-cutter-1048.html

Working Video-2: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-sling-rope-383.html

Working Video-3: www.foxsew.com/company-video/extra-heavy-duty-automatic-pattern-sewing-machine-for-rope-bartacking-384.html

Working Video-4: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-with-large-shuttle-hook-for-slings-ropes-368.html

Working Video-5: www.foxsew.com/company-video/extra-heavy-duty-pattern-sewing-machine-for-climbing-ropes-366.html

Working Video-6: www.foxsew.com/company-video/heavy-duty-automatic-pattern-sewing-machine-for-sling-webbing-510.html

Working Video-7: www.foxsew.com/company-video/extra-heavy-duty-automatic-sewing-machine-for-lifting-ropes-382.html

FOXSEW Heavy Duty Pattern Sewing Machine with Large Shuttle Hook for any thickness threads sewing, the special trimming design has been applied the patent and could cut off threads instantly.
The Presser foot lift is up to 25mm, suitable for stitching the extra heavy duty materials.
Be provided with function of avoiding needle broken, preventing the needle to be cut of shape or cut off when sewing heavy materials.

Specifications:

Model No. FX1310H / FX1306H
Sewing Area 130mm x 100 mm / 130mm x 60 mm
Max.Sewing Speed 1000 r.p.m
Hook Large Shuttle Hook
Stitch Length 0.1mm-12.7mm
Needle Bar Sroke 56 mm
Out Presser Foot Lift 50 mm
Middle Presser Foot Stroke 10 mm
Middle Presser Foot Lift 33 mm
Thread Tension Electronic Thread Tension
Pattern Date Storage

U Disk: 999 kinds of patterns

Needle sews 5000 times per pattern

Function of Expand,Narrow 1-400% (0.1 unit)
Mode of Expand,Narrow

Add or reduce stitch length

Add or reduce sewing times

Lubrication Semi-automatic
Servo Motor

750W-1000W AC Servo Motor

Needle DY x 3 # 180-250
