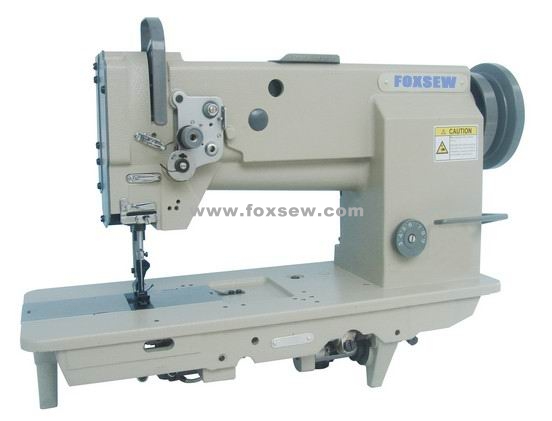

Compound Feed Heavy Duty Lockstitch Sewing Machine

  • Product Name:  Compound Feed Heavy Duty Lockstitch Sewing Machine
  • Model NO.:  FX-4400
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Compound Feed Heavy Duty Lockstitch Sewing Machine

FOXSEW Compound Feed Heavy Duty Lockstitch Sewing Machines series

FX-4400 (Single-needle)

FX-4420 (Double-needle)

FX-4401 (No backstitch)

FX-4400L (Left hook)

FX-4400D (Single-needle and thread trimmer with reverse sewing)

FX-4420D (Double-needles and thread trimmer with reverse sewing)

Working Video: www.foxsew.com/company-video/double-needle-walking-foot-leather-sewing-machine-386.html

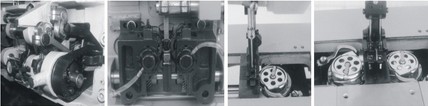

Features: Compound Feed Heavy Duty Lockstitch Sewing Machine is the latest of FOXSEW brand heavy duty sewing machines, which is designed with large vertical rotating hooks for thread loop catching and sliding bars for thread up-taking. It has been sub-classed into single needle, two needles, single needle with under-trimmer and two needles with under-trimmer. The application of needle bearings for arm shaft and hook shaft, dog belt driving, plunger pump lubrication and compound feed by needle bar, presser foot and feed dog provides this series with such splendid features as smooth running, quiet working and a long service life. It is also equipped with a safety clutch to prevent the hooks from damage by over-duty operation. So it is especially available in stitching sofa, Suitcase, car seat cushions, car upholstery, safety belts, safety air bags, handbags, Luggage case, tents, parachutes, etc..

Specifications:

Model

FX-4400

Max. Sewing Speed

2000 r.p.m

Stitch Length

0-9 mm

Needle Bar Stroke

36 mm

Thread Take-up lever stroke

74.5 mm

Presser foot lift

By Hand: 8mm  By Knee: 16 mm

Needle Size

DPX17 18#-23#

Rotating Hook

Automatic Lubricated Large Rotary Hook

Lubrication

Automatic Lubricated

Safety Clutch device

Yes

Needle Gauge

Standard: 6.4mm, 3.2, 4.8, 9.5, 12.7 mm is available.

Motor

400W 1400 r.p.m and 550W Servo Motor
