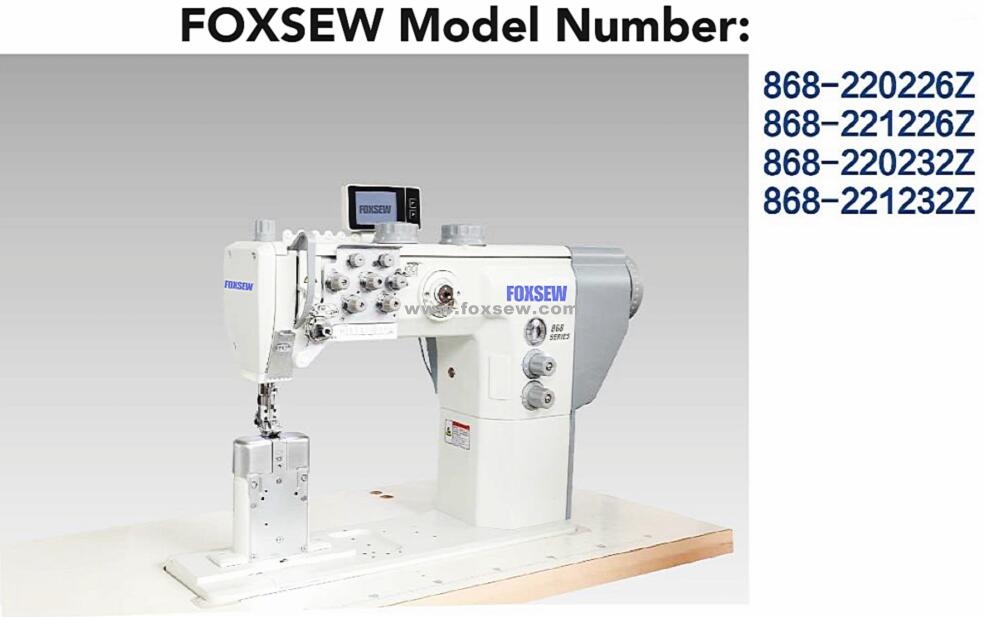

Durkopp Adler 868 Direct Drive Post Bed Leather Sewing Machine

  • Product Name:  Durkopp Adler 868 Direct Drive Post Bed Leather Sewing Machine
  • Model NO.:  FX-868-221226Z
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Quality System Certification:  CE
Contact Now

  • Product Details:  Durkopp Adler 868 Direct Drive Post Bed Leather Sewing Machine

FOXSEW Durkopp Adler 868 Classic Post Bed Sewing Machines Series
Durkopp Adler 868 M-Type Post Bed Leather Upholstery Sewing Machines
Applications for Sewing Car Interiors, Automotive Upholstery, Marine and Aviation Interior Upholstery, Leather Upholstery, Sofas, Bags, Suitcase, Furniture Upholstery, Leather Armchairs, Leather Recliners, Sports Apparatus, Office Furniture, Soft Cushion, Shoes, Sports Products, Car Seats, Leather Articles, Belts, Canvas, Handbags, Outdoor Wear, Overalls, Uniforms, Jeans, etc...
Post Bed, 1/2-Needle, Compound Feed, Walking Foot, Large Vertical Axis Hook and Large Bobbin, Single/Dual Alternating Presser Foot, Hook Safety Clutch Device, Automatic Lubrication System, Single/Dual Dial for Alternating Movement...
Durkopp Adler 868 Post Bed Leather Sewing Machine
Durkopp Adler 868 M-Type Post Bed Sewing Machine
Durkopp Adler Classic 868 Direct Drive Post Bed Sewing Machine
Durkopp Adler 868 Series Post Bed Leather Upholstery Sewing Machine
Durkopp Adler 868 M-Type Leather Upholstery Sewing Machine
Durkopp Adler 868 Type Direct Drive Post Bed Leather Sewing Machine
Durkopp Adler 868 Classic Post Bed Leather Sewing Machine
Durkopp Adler 868 Direct Drive Post Bed Upholstery Sewing Machine
Durkopp Adler 868 Direct Drive Post Bed Leather Sewing Machine
FOXSEW FX-868 Series M-Type Lockstitch Post Bed Sewing Machine
The powerful post bed machines from the M-TYPE series set new standards in functionality and flexibility. The robust construction in connection with the impressing performance parameters and the excellent equipment features of the CLASSIC variants make these machines an ideal operating means for demanding sewing operations in the field of medium-heavy duty sewing. This facilitates the processing of extreme thread and fabric thicknesses as well as a multitude of most different material.
The large clearance (335mm wide and 332mm high) facilitates the handling of large area workpieces.
Powerful and effective feeding system with bottom feed, needle feed and alternating top feed.
Up to 12mm long stitches for standard seams and decorative topstitching.
The extremely high sewing foot lift up to 25mm facilitates the feeding and removing of bulky workpiece.
The sewing foot stroke up to 9mm allows the safe climbing over differently high material plies.
New hook technology with large bobbin for thread sizes up to Nm 8/3 max. or braided thread with a thickness of 1.2mm.
Additional automatic thread tension.
FOXSEW FX-868 Series M-TYPE Single/Twin Needle Post Bed Leather Upholstery Sewing Machines
Following the “First of M-Type” the second model of the M-Type series is available now, FOXSEW 868 series in the versions ECO and CLASSIC.
Owing to their spectrum of performance the single-needle and twin-needle post bed machines offer maximum flexibility.
The great variety of equipment makes it possible to use these machines for a multitude of applications on the sector of medium-heavy duty decorative stitching.
The design typical for the M-Type and the ergonomically arranged operating elements guarantee maximum ease of use for topstitching operations on three-dimensional workpieces.
Advantages of FOXSEW class 868 Series:
Extremely slim sewing head for an excellent view on the sewing area
Low noise level
Central wick lubrication (minimum lubrication incl. hook)
Smooth, powerful and effective material feed
Sewing feet and tape guides of class 768 can be used
Additional advantages of the FOXSEW FX-868 Series CLASSIC
Pneumatic additional thread tension for excellent stitch formation when climbing over thick spots
Integrated second stitch length
Thread trimmer with a remaining thread length of 15mm only
Quick stroke adjustment (activated by knee switch)
Automatic backtacking
Integrated LED sewing lamp

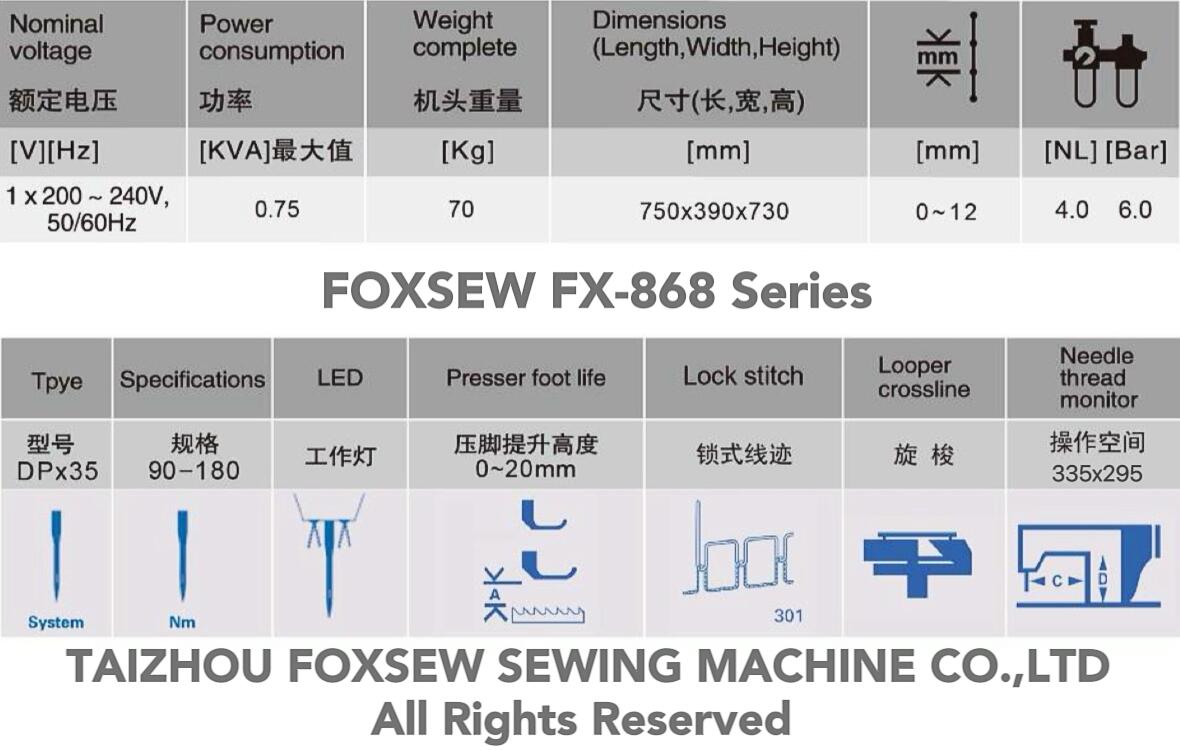

Technical features of FOXSEW class FX-868 Series
Max.stitch length 12mm
Max.stroke of the alternating sewing feet 9mm
Max.thread size Nm 10/3
Max.sewing speed up to 2.500 stitches/min.
Needle distances up to 30 mm
Max.sewing foot lift up to 20mm
