Auto-Flipping Mattress Tape Edge Machine

  • Product Name:  Auto-Flipping Mattress Tape Edge Machine
  • Model NO.:  FX-WB-4A
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Auto-Flipping Mattress Tape Edge Machine

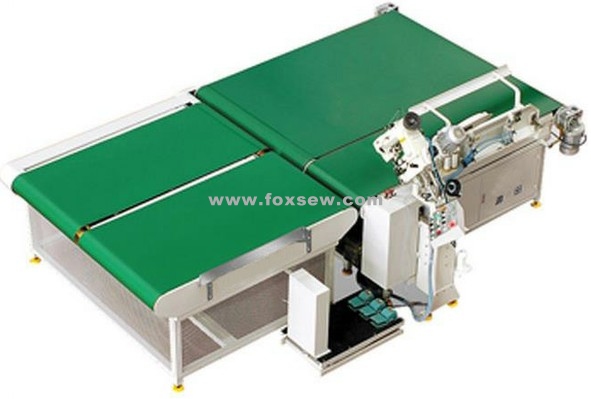

FOXSEW Auto-flipping Tape Edge Machine

Working Video 1: www.foxsew.com/company-video/auto-flipping-tape-edge-machine-276.html

Working Video 2: www.foxsew.com/company-video/auto-flipping-mattress-tape-edge-machine-295.html

Working Video 3: www.foxsew.com/company-video/automatic-flipping-mattress-tape-edge-machine-300.html

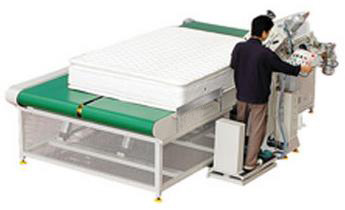

Features: FX-WB-4A Auto-Flipping Mattress Tape Edge Machine is mainly used for taping edge of mattress panel and soft cushion. Rather than moving around, the head is fixed but can move up and down to adapt to different height of mattress. The obliquity of the head is adjustable. When working, the conveying belt drives the mattress to proceed, When one side is finished, the machine can swerve 90°automatically to start taping another side. The taping of the corner is finished while swerving. When the top four sides are completed, the machine can overturn the mattress for taping the other four sides. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.

Technical characteristics:

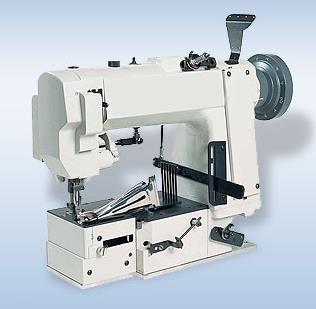

1, Featuring the heavy-duty 300U Chain stitch sewing head and variable speed control, the Tape Master is capable of taping all sizes of mattresses from crib to king.

2, Specifically designed for today’s heavy premium and pillow top mattresses, the high-speed head sews up to 3000 RPM.

3, The operator remains in a stationary sewing position while wide controlled conveyor belts move the mattress. The patented compression and turning devices built into the machine bring the mattress to the sewing head.

4, The process is further automated by the unique design that turns and flips the mattress in preparation for taping the other side.

Specifications:

Model No.:

FX-WB-4A

Productivity

20 pcs/hour

Thickness of Mattress

50-400 mm

Head Lifting Range

0-300 mm

Sewing Head

300U Chain stitch

Working Angle of the sewing head

25-65 degree

Table Dimension

3760x1980x880 mm

Total Power

3KW

Power Supply

220V/380V, 50HZ, 3-Phase

Air Supply

0.6-0.8 Mpa

Machine Weight

1350 KGS
