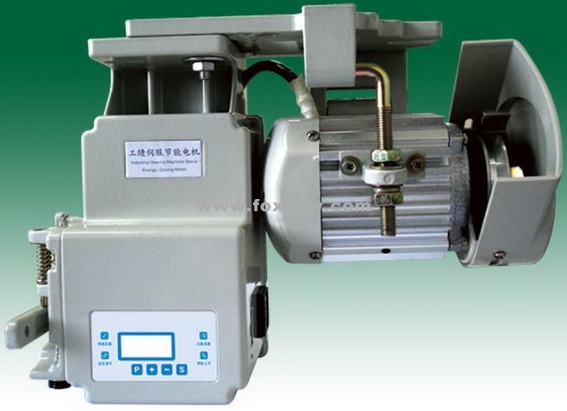

Energy Saving Motor

  • Product Name:  Energy Saving Motor
  • Model NO.:  FX6580
  • Origin:  Zhejiang,China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Energy Saving Motor

Features:

  1. Remarkable energy-saving: the motor starts instantly, stop instantly, has no-loading running, and it could save 60%-80% power at least compared with normal clutch motor.
  2. Balance output power: its output power matches with need of sewing machine automatically economizing power.
  3. Stepless change speed: the stepless change speed is controlled by foot in the operation from 100-3800 r.p.m
  4. Low speed with high torque: the speed of 600r.p.m starts and the output power is 3Nm at least.
  5. No maintenance, long life: brushless design to avoid cleaning the motor and changing the carbon brush frequently.
  6. Super width voltage work: AC180-260 normal work.
  7. One Motor multi-function: It could be instead of all the clutch motors within 800W.
  8. Fast and low starting sewing set: It could be fast and low starting sewing set by starting instantly.
  9. Up to the environment protection concept: the lower noise, the least heat, and the even operation for the motor running.
  10. Needle up and down function: the panel design makes the regulation operation more convenient.

Applications for sewing machines: single needle and double needle lockstitch, heavy duty sewing machines, heavy duty zigzag sewing machines, post bed heavy duty sewing machines, etc...

Specifications:

Model Number Output Voltage Current Freq Speed
FX6580 0-800W 110/220V 3/6A 50/60HZ 0-3800r.p.m
