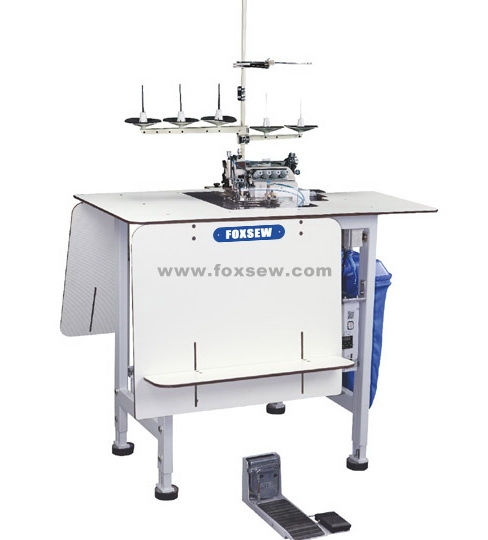

Automatic Jeans Side Seamer Sewing Machine

  • Product Name:  Automatic Jeans Side Seamer Sewing Machine
  • Model NO.:  FX889-AUT
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Jeans Side Seamer Sewing Machine

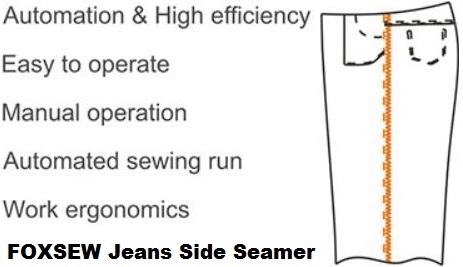

FOXSEW Automatic Jeans Side Seaming Overlock Sewing Machine, Automatic Jeans Linking Workstation.

Working Video: www.foxsew.com/company-video/automatic-jeans-side-seamer-sewing-machine-854.html

Efficiency: Daily output: 450 trousers per 8 hours (complete inside and outside seams)
Features: An accurately adjustable contour guide ensures a consistent seam width along the entire length of the seam.
The beginning and the end of the seam are controlled by photocell.
Contour guide has the function of side blowing to ensure consistent seam wide.
Contour guide can be travelled at right angles to the sewing unit.
Automatic pocket edge cutting with waste suction device.
Applications: FOXSEW FX889-AUT is a compact semi-automatic machine for closing jeans outside or inside seams, also can apply to closing seams of jacket, short skirt.

This Automatic Jeans Linking Sewing Platform for automatic sewing jeans can be easily stitch the side seams and inner seams of jeans.And it alsocan be used for inner seams of jackets,skirts and sleeves.An accurately adjustable contour guide ensures a consistentseam width along the entire length of the seam.The practice-proven switching until allows the reliable switching between manualsewing.e.g. for excessive hip curves,and automatic sewing of the remaining seam.The photoelectric switch controls the beginning seam and theending one.Edge control device can ensure materials can be smoothly located at proper position.At the very beginning ofthe sewing,the pocket edge can be automatically cut,the debris collecting device can collect fabric clippings, automatically cutthread and lift the presser.

Specifications:

Model NO.:  FX889-AUT
Sewing Speed:  7500 r.p.m
Stitch Length:  0-5 mm
Seaming Width:  0-6 mm
Needle Gauge:  0-5 mm
Power:  0.6 kw
Packing Size:  150x90x150cm
Weight:  130 kgs
