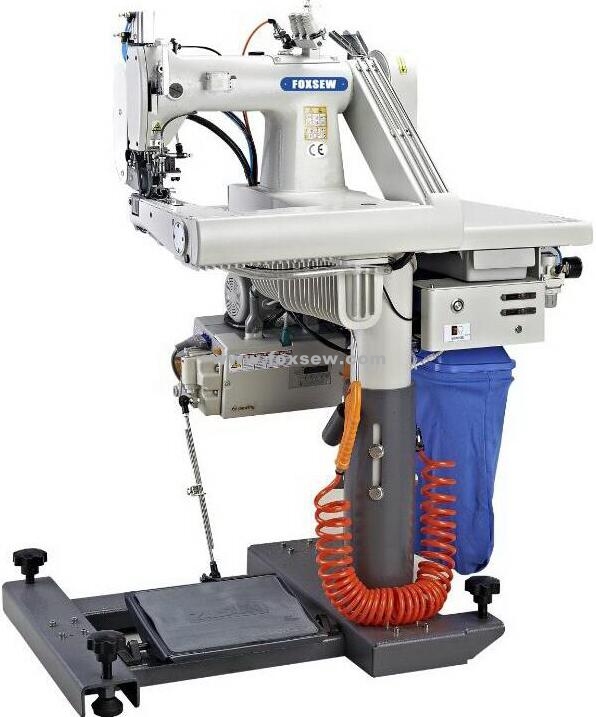

Automatic Feed off the Arm Sewing Unit

  • Product Name:  Automatic Feed off the Arm Sewing Unit
  • Model NO.:  FX-9688D
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Feed off the Arm Sewing Unit

FOXSEW Fully Automatic Feed off the Arm Chain Stitch Sewing Machine Unit, Multi-Function Fully Automatic Feed off the Arm Chainstitch Sewing Machine

The machine can realize high speed sewing by adopting automatic lubricating system, it can improve productivity 35% by comparing with normal models.
Features: Key moving parts with GIC high hardness coating process, reducing parts wearing and extend the machine life.
Racing puller the puller driven from inside structure, synchronizing to the machine rotating; slant wide puller, better to crossing the joints. Pneumatic presser foot lifting and puller lifting, needle cooler and automatic suction thread trimmer. Steel stand and table with wheels, convenient for moving the machine, performing steadily, low noise and low vibration. Lubrication system: spatter lubricating in machine base, auto lubricating of the upper shaft.

Working Video-1: www.foxsew.com/company-video/fully-automatic-feed-off-the-arm-chain-stitch-machine-with-automatic-thread-trimmer-800.html

Working Video-2: www.foxsew.com/company-video/automatic-feed-off-the-arm-chainstitch-sewing-machine-fully-oil-lubrication-787.html

Machine's Features:
The full set of components are taken by hard-wearing treatment, and the sewing speed can reach 4500 rpm.
The machine is configured with pneumatic presser lift, puller lift, needle cooler, auto suction device, automatic thread trimmer, automatic oil-lubrication, and collecting the line.
Portable package in iron holder, low noise and low vibration, easy assembling and debugging.


Classifications:
FX-9688D-XH-PL/2PL/PS-SD (Direct Drive with QIXING Servo Motor)
FX-9688D-XH-PL/2PL/PS-SD1 (QIXING Servo Motor with Automatic Needle Orientation)
FX-9688D-XH-PL/2PL/PS-SDH (Direct Drive with HO-HSING Servo Motor)
FX-9688D-XH-L/2PL/PS-H9 (With HO-HSING Servo Motor)
Specifications:
Stitch form: three needle chain stitch
Max. sewing speed: 4500rpm
Stitch length: 2.6-4.8mm/sti
Needle: 3 needles, TVx5#21
Motor: 750W servo motor
