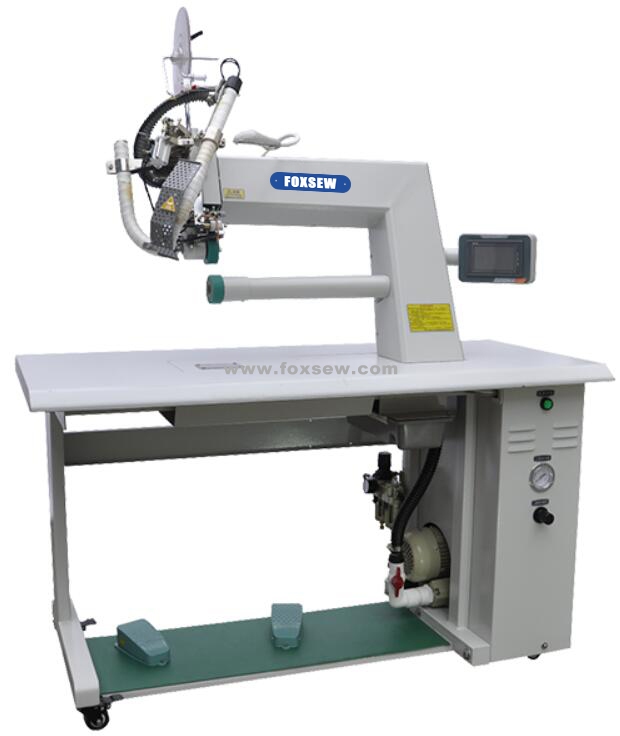

Hot Air Seam Sealing Machine

  • Product Name:  Hot Air Seam Sealing Machine
  • Model NO.:  FX-V5
  • Origin:  Zhejiang, China
  • Brand Name:  FOXSEW
  • Product Details:  Hot Air Seam Sealing Machine

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 2º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. Double pedal control is designed according to human mechanics, simple and comfortable, suitable for long-time operation

5. It is possible to work 24 hours continuously with high efficiency.

6. Blowing-in wind can be filtrated without oil water by unique heater tube.

7. Horizontal lower arm designed, more suitable to produce pocket type products, bucket type products, shoes, cap, collars, trousers and so on.

Specifications:

Model

FX-V5

Power

110V/220V 50/60HZ

Rating Power

2800W

Heat Control

Room Temperature~700°C adjustable without bands

Speed

2-18m/min infinity variable

Air Supply

0.35~0.5 Mpa

Width of Pinch Roller

Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand

Width of Seam Sealing Tape

14mm-22mm standard, others are available according to requirements

Packing Size

1300x600x1530 mm

Weight

140 kgs

Prevention Against Jumping over sewing work

There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping
