Hot Air Welding Machine for Inflatable Boats and Tents

  • Product Name:  Hot Air Welding Machine for Inflatable Boats and Tents
  • Model NO.:  FX-V13
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Hot Air Welding Machine for Inflatable Boats and Tents

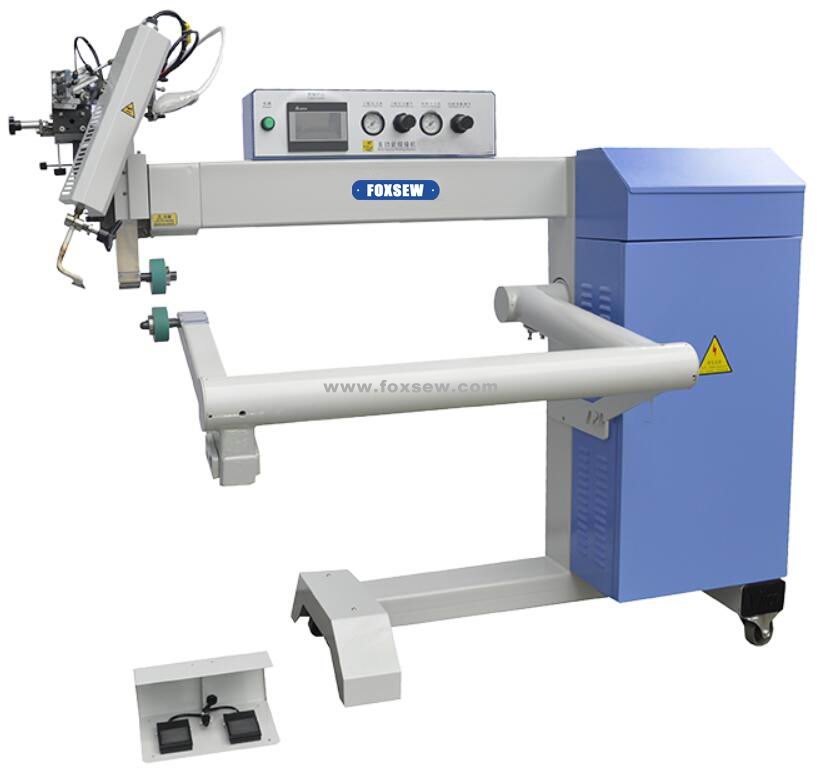

FOXSEW Hot Air Welding Machine for Inflatable Boats and Tents

Working Video-1: www.foxsew.com/company-video/hot-air-welding-machine-for-inflatable-boats-and-tents-2372.html

Working Video-2: www.foxsew.com/company-video/hot-air-welding-machine-for-inflatable-boats-and-tarpaulin-2371.html

Working Video-3: www.foxsew.com/company-video/long-arm-hot-air-welding-machine-3337.html

Features of FOXSEW FX-V13
(1). Providing super-large space for welded, more suitable for super-large, large, medium, small size products etc...
(2). Controolled by programmable PLC, displays the digital setting by high clear display processes to be modified at any time according to user's requirement.
(3). Auto controllable temperature,highly stability, temperature vary between +-2C, the upperlimit temperature with alarming device.
(4). To design controlling by feet at ease, suitable for long working according to physical dynam.
(5). Be possible of working 24 hours continuously and produce highly efficiently.
(6). Unique heating tube stucture design.
(7). Auto slightly fading function,to avoiding blank space of hot air sealing.
(8). Providing with king-size of twist square design.
Technical prameter:
Model: FX-V13
Power supply: AC 220V 50Hz
Rating efficiency: 3000W
Heat Control: Room temperature ~ 700C adjustable without bands.
Speed:Standard: 1~18m/min infinitey varible
Air supply: 0.35~0.5Mpa
Pinch roller Width: Standard: 30mm mill finish,steel grain,straight grain to be chosen according to demand.
Width of the gun diameter: Standard:24mm or 27mm,others can be choosen according to demand.
Exterior size: 1500mm x 720mm x 1600mm
Net Weight: 245kg
Prevention against jumping over sewing work: There area adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting , or when the gun moving outward with the idle wheel stopping.
