- Product Name: Long Arm Hot Air Welding Machine for Tarpaulin
- Model NO.: FX-V13-L
- Origin: Zhejiang, China
- Packing: Wooden Case
- Brand Name: FOXSEW
-
Product Details: Long Arm Hot Air Welding Machine for Tarpaulin
FOXSEW Long Arm Hot Air Welding Machine for Inflatable Boats and Tents, Hot Air Welding Machine for Tarpaulin, PVC and Roofing
Working Video-1: www.foxsew.com/company-video/hot-air-welding-machine-for-inflatable-boats-and-tarpaulin-2371.html
Working Video-2: www.foxsew.com/company-video/hot-air-welding-machine-for-inflatable-boats-and-tents-2372.html
Working Video-3: www.foxsew.com/company-video/long-arm-hot-air-welding-machine-3337.html
Features of FOXSEW FX-V13-L, 1.3 meter long arm.
(1). Providing super-large space for welded, more suitable for super-large, large, medium, small size products etc...
(2). Controolled by programmable PLC, displays the digital setting by high clear display processes to be modified at any time according to user's requirement.
(3). Auto controllable temperature,highly stability, temperature vary between +-2C, the upperlimit temperature with alarming device.
(4). To design controlling by feet at ease, suitable for long working according to physical dynam.
(5). Be possible of working 24 hours continuously and produce highly efficiently.
(6). Unique heating tube stucture design.
(7). Auto slightly fading function,to avoiding blank space of hot air sealing.
(8). Providing with king-size of twist square design.
Technical prameter:
Model: FX-V13-L
Power supply: AC 220V 50Hz
Rating efficiency: 3000W
Heat Control: Room temperature ~ 700C adjustable without bands.
Speed:Standard: 1~18m/min infinitey varible
Air supply: 0.35~0.5Mpa
Pinch roller Width: Standard: 30mm mill finish,steel grain,straight grain to be chosen according to demand.
Width of the gun diameter: Standard:24mm or 27mm,others can be choosen according to demand.
Exterior size: 2000mm x 720mm x 1600mm
Net Weight: 280 kgs.
Prevention against jumping over sewing work: There area adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting , or when the gun moving outward with the idle wheel stopping.
-

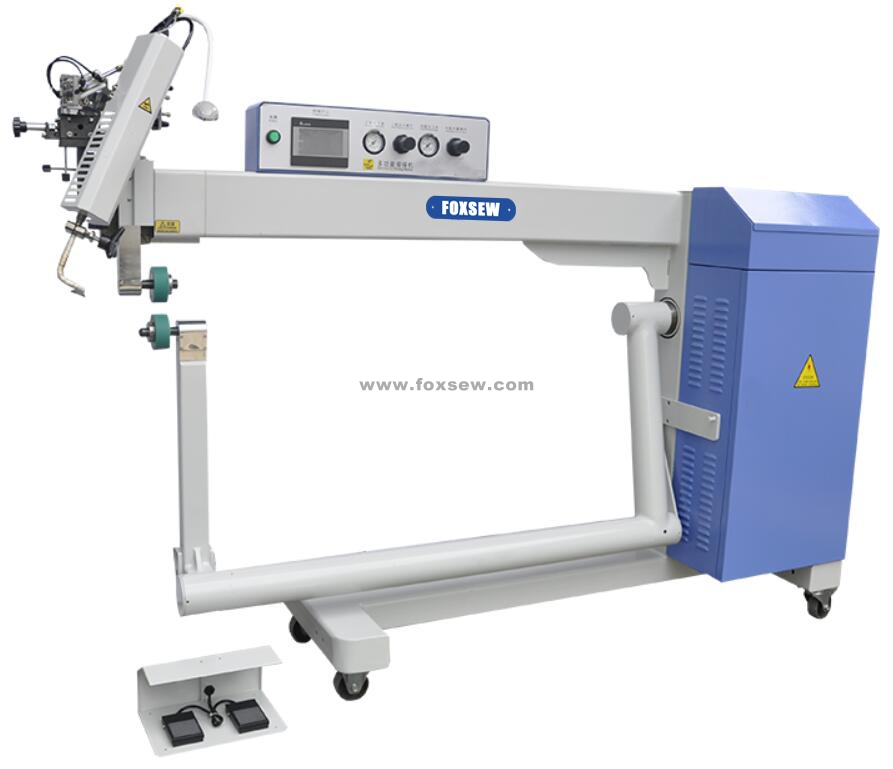

Product Images: Long Arm Hot Air Welding Machine for Tarpaulin
-
