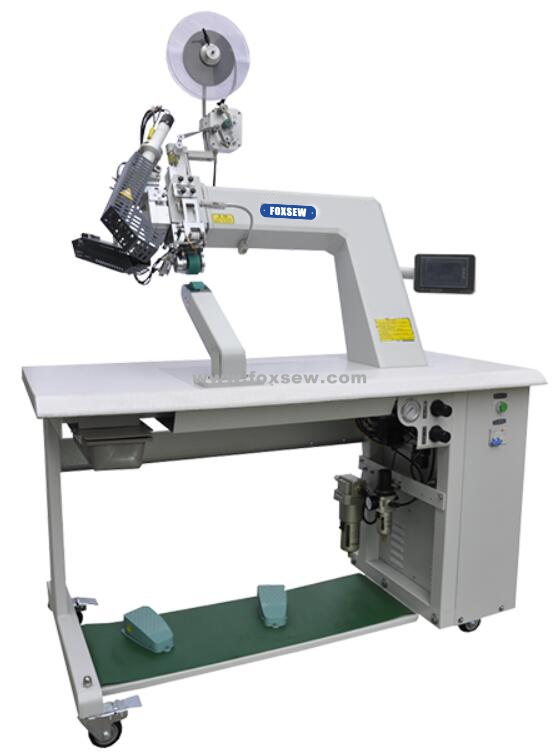

Hot Air Seam Sealing Machine

  • Product Name:  Hot Air Seam Sealing Machine
  • Model NO.:  FX-V7
  • Origin:  Zhejiang, China
  • Brand Name:  FOXSEW
  • Product Details:  Hot Air Seam Sealing Machine

Working Video: http://www.foxsew.com/company-video/hot-air-seam-sealing-machine-50.html

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 1º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.

5. Be possible of working 24 hours continuously and produce highly efficiently.

6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.

7. Auto slightly fading function.

8. Auto clipped tape, sending tape and auto completed, to decrease the wastage of material.

9. Unique device with the down column suitable of any sizes of products close sealing pressure belt.

10. Large and strengthened zigzag-rule structure provides efficient and flexible working space, low noise.

Specifications:

Model

FX-V7

Power

110V/220V 50/60HZ

Rating Power

3000W

Heat Control

Room Temperature~700°C adjustable without bands

Speed

2-22m/min (adjustable without band)

Air Supply

0.03~0.2Mpa (adjustable without bands, displayed by a pressure meter)

Nozzle Width

Standard Flat Nozzle 24mm

Pressure of upper pinch roller

0-0.2Mpa adjustable without bands (pressure meter display)

Pinch roller Width

Mill finish standard 25mm, optional for others such as steel wheels, meshwork wheels and concave wheels

Packing Size

1350x730x1900 mm

Weight

170 kgs

Prevention Against Jumping over sewing work

There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping
