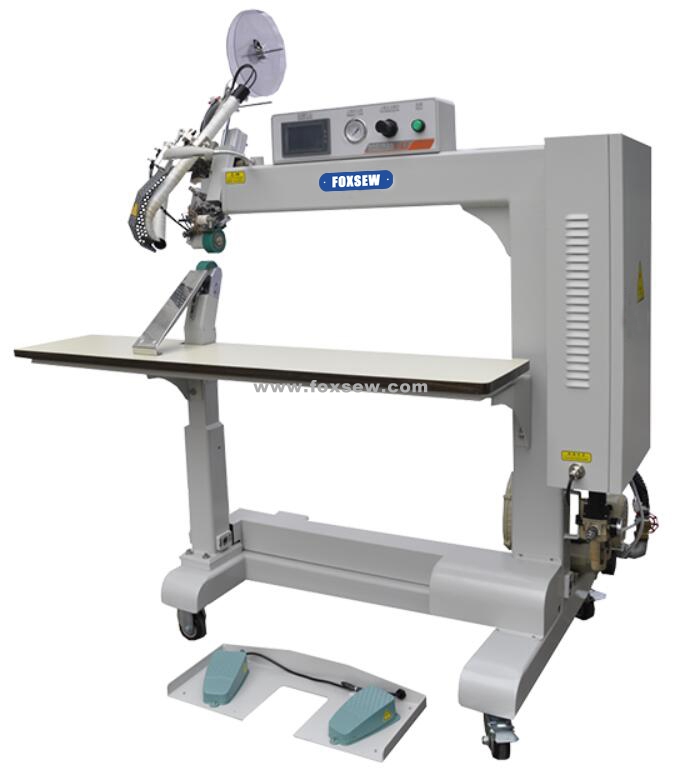

Hot Air Seam Sealing Machine for Tents

  • Product Name:  Hot Air Seam Sealing Machine for Tents
  • Model NO.:  FX-V12
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Hot Air Seam Sealing Machine for Tents

FOXSEW Hot Air Seam Sealing Machine for Tents and Inflatable Boats

Working Video 1: www.foxsew.com/company-video/hot-air-welding-machine-for-inflatable-products-540.html

Working Video 2: www.foxsew.com/company-video/hot-air-inflatable-welding-machine-541.html

Working Video 3: www.foxsew.com/company-video/inflatable-hot-air-welding-machine-542.html

Working Video 4: www.foxsew.com/company-video/hot-air-seam-sealing-machine-49.html

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 2º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.

5. Be possible of working 24 hours continuously and produce highly efficiently.

6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.

7. Auto slightly fading function.

8. Auto clipped tape, sending tape and auto completed, to decrease the wastage of material.

9. Auto reverse function to avoid blank welding on the beginning.

10. Super-Large Space for operation, more suitable for medium and large-size tents, vehicle hoods, inflatable boat, hoods, etc…

Specifications:

Model

FX-V12

Power

110V/220V 50/60HZ

Rating Power

2800W

Heat Control

Room Temperature~700°C adjustable without bands

Speed

2-18m/min infinity variable

Air Supply

0.35~0.5 Mpa

Width of Pinch Roller

Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand

Width of Seam Sealing Tape

14mm-22mm standard, others are available according to requirements

Packing Size

1300x600x1530 mm

Weight

167 kgs

Prevention Against Jumping over sewing work

There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping
