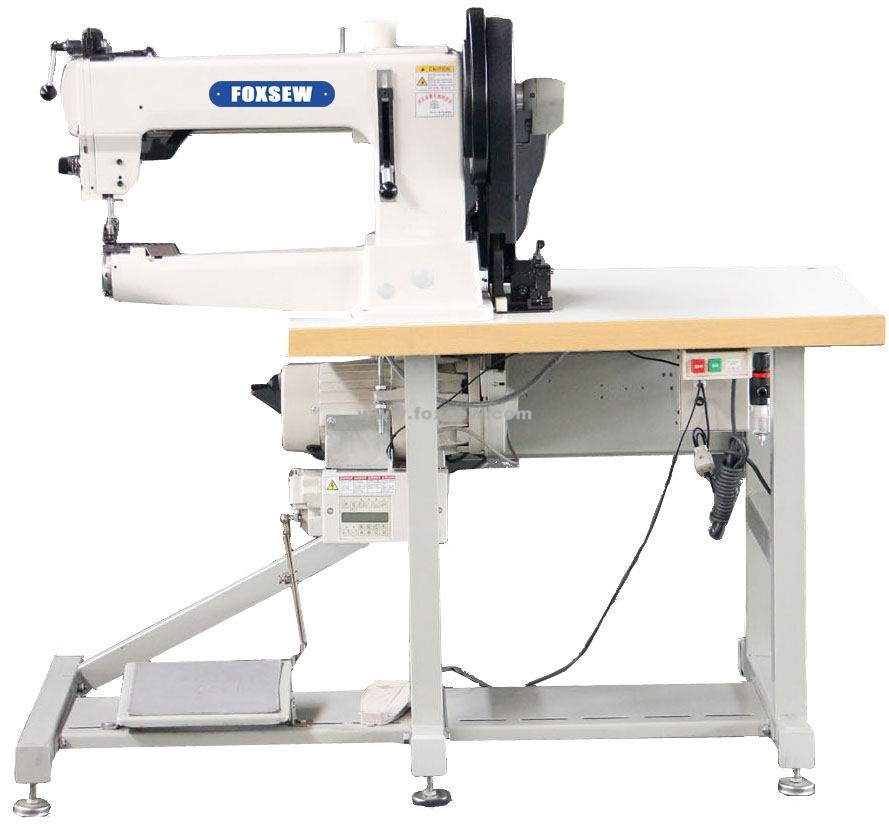

Cylinder Arm Extra Heavy Duty Walking Foot Upholstery Sewing Machine for Leather and Webbings

  • Product Name:  Cylinder Arm Extra Heavy Duty Walking Foot Upholstery Sewing Machine for Leather and Webbings
  • Model NO.:  FX-205-420
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Cylinder Arm Extra Heavy Duty Walking Foot Upholstery Sewing Machine for Leather and Webbings

FOXSEW Cylinder Arm Extra Heavy Duty Triple Feed Walking Foot Lockstitch Sewing Machine for Leather Upholstery and Sling Webbings Stitching and Decorative Seaming, for Harness and Automotive Interior Trims, Golf bags, Leather Sofas.

Heavy Duty Cylinder Bed Compound feed sewing machine for Heavy Leather and Upholstery Fabrics
Cylinder Bed Leather Sewing Machine for Saddle and Harness
Upholstery Sewing Machine for Leather Sofas with extra Thick Thread
Cylinder Bed Heavy duty Sewing Machine for Golf Gags Filters and Upholstery

Working Video: www.foxsew.com/company-video/cylinder-bed-extra-heavy-duty-walking-foot-upholstery-sewing-machine-for-leather-and-lifting-webbing-345.html

Applications: Leather Sofas, Sling Webbings, Automotive Interior Trims, Leather Shoes, Saddles, Safety Harness, Filters, Footwear, Car Upholstery, Marine Upholstery, Furniture Upholstery,Polyester Lifting Slings, Safety Belts, Military Belts, Golf Bags, Softball Bags, Backpacks, Cargo Straps, Filters, Industrial Bags, Industrial Safety Products, Tire Covers and Chairs Border etc.

Features: At the base of up-down Synchronized feeding material , we develop the up feeding materials single system which is distinguished from the down feeding materials , to make feeding materials desynchronized, as the specialized equipment of flap cover, it adds the versatility and practicality in sewing heavy materials.

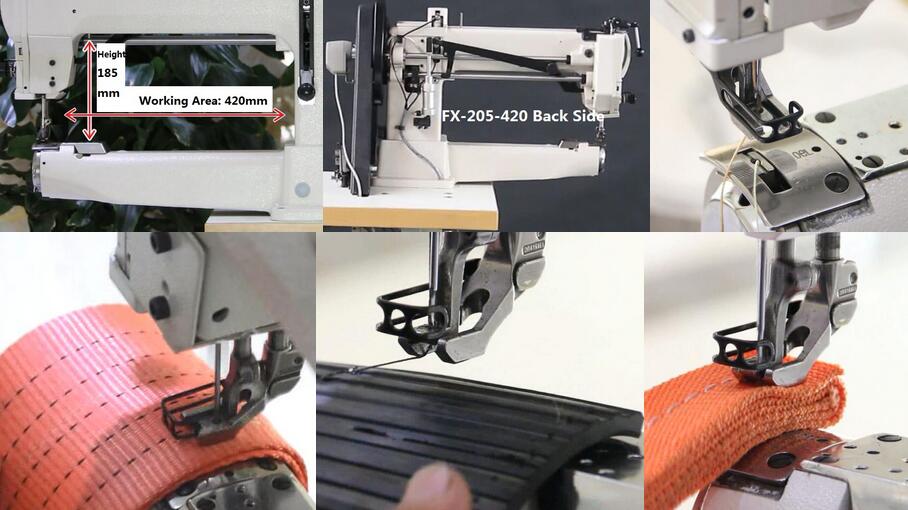

The lift of presser foot is up to 20MM, suitable for sewing the extra heavy-weight materials, movement of presser foot can be infinitely. Sewing area can be 420mm, suitable for large, high and cylinder products.

Large barrel shuttle reduces the times of thread changes and raises sewing efficiency. Suitable for stitching handles, tool bag, safety belt, leather belt, tent, cushion, bags, shoes etc including one set of presser, instead of the imported sole out seam stitch, This machine is stable performance, easy to use, multi-functional.

Specifications:

Model

FX-205-420

Operating Area:

420x185 mm

Cylinder Bed Diameter:

81 mm

Max. Sewing Speed

800 r.p.m

Stitch Length

0-11 mm

Needle Bar Stroke

56 mm

Thread Take-up Lever Stroke

92 mm

Presser Foot Lift

By hand: 15mm, By Knee: 20 mm

Needle Type

DYX3 21#-28#

Motor

750W Servo Motor
