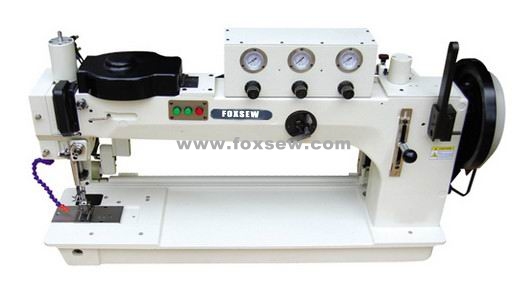

Long Arm Heavy Duty Zigzag Sewing Machine For Sail making

  • Product Name:  Long Arm Heavy Duty Zigzag Sewing Machine For Sail making
  • Model NO.:  FX-366-76-12HM
  • Origin:  Zhejiang,China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Long Arm Heavy Duty Zigzag Sewing Machine For Sail making

FOXSEW Long Arm Heavy Duty Sail Making Zigzag Sewing Machine

Working Video 1: www.foxsew.com/company-video/long-arm-heavy-duty-sail-making-and-repair-zigzag-sewing-machine-456.html

Working Video 2: www.foxsew.com/company-video/long-arm-heavy-duty-sail-making-zigzag-sewing-machine-457.html

Working Video 3: www.foxsew.com/company-video/long-arm-sail-making-zigzag-sewing-machine-446.html

Working Video 4: www.foxsew.com/company-video/long-arm-heavy-duty-zigzag-sewing-machine-for-sail-making-66.html

Applications: boat sails, spinnakers, parasail, awnings, boat covers, upholstery, parachutes, shade sails, tent & marquees, tarpaulins and industrial safety products

1. Cam controlled extra heavy duty long arm zigzag machine with large barrel shuttle hook and reverse.

2. Standard supplied with puller for strong and steady feeding, 3different cams suitable for straight stitch, 2step 3step and 4step zigzag, and pneumatic the presser foot lift and pneumatic back tack, needle cooler and hook cooler

3. The extra long arm clearance of 800mm is very useful when sewing larger items. A high foot lifter up to 20mm allows for heavy & bulky materials, such as sail tent and marquees and tarpaulins.

4. This is the improved version of Durkopp Alder 366-76-12-HM.

Long Arm Heavy Duty Zigzag Sewing Machine

1. It is excellent choice for modern sail loft , for straight and zigzag stitch operations in the production of large sails, storm sails, awnings, thick corner and heavy webbing reinforcement.

2. Standard supplied with puller for strong and steady feeding, 3different cams suitable for straight stitch, 2step, 3step and 4step zigzag, and pneumatic the presser foot lift and pneumatic back tack

3.  The extra long arm clearance of 800mm is very useful when sewing larger items. A high foot lifter up to 20mm allows for heavy & bulky materials, such as sail tent and marquees and tarpaulins.

 4.this machine comes with excellent price / performance ration especial for boat sails  making and parachute repairing.

Specifications:

Model

FX-366-76-12HM

Max. Sewing Speed

800 r.p.m

Stitch Length

0-8 mm

Needle Type

DYX3 25#

Zigzag Width

0-12 mm

Max Sewing Capacity

10 mm

Needle bar stroke

50.8 mm

Shuttle

KSP-204N

Working Space

30”x6 7/8” (762x175mm)
