Zigzag Sewing Machine with Automatic Thread Trimmer

  • Product Name:  Zigzag Sewing Machine with Automatic Thread Trimmer
  • Model NO.:  FX-8652D
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Zigzag Sewing Machine with Automatic Thread Trimmer

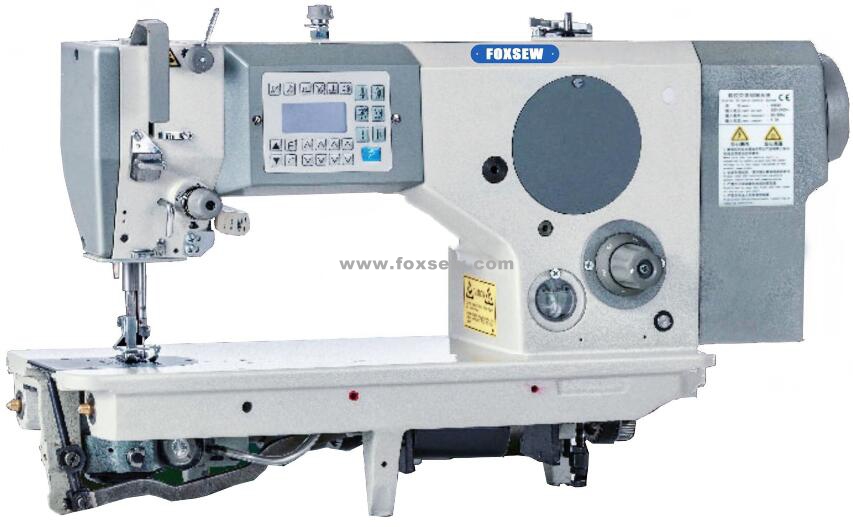

FOXSEW Computerized Direct Drive Zigzag Sewing Machine with Automatic Thread Trimmer.
Computerized Automatic Thread Trimming Zigzag Sewing Machine is good for sewing heavy duty materials, it's suitable for the artificial leather, heavy duty cloth, leather and suit for straight seams, multi-points patterns zigzag stitches, by changing Cams.
Automatic drive built in motor, operating panel and control system are integrated into the sewing machine, beautiful and novel appearance. Adopt new style automatic thread trimming mechanism, perfect the trimming effect and improve work efficiency. Vertical needle bar movements, the needle can insert the sewing material entirely and vertically, strong impalement power of needle.

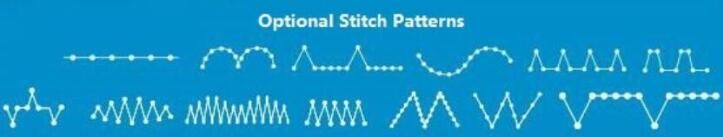

Automatic thread trimming, automatic backstitch, automatic lift presser foot function …etc. It can make 14 kinds zigzag seam through change the cams.
Applications: It's good used for sewing and ornamental stitching shoes upper, footwear, sofa covers, leather bags, handbags, sports apparatus, wet suits, filters, parachutes, spinnakers, windsurf sail, blinds, nets, bandages, straps, Velcro, Neoprene, body supports etc...
1. This computerized, direct-drive, high-speed, lockstitch, Zigzag stitching machine features in automatic thread trimmer, automatic presser foot lift and automatic backtacking (reverse stitch).
2. The new auto thread trimming system cut thread very short that eliminate manual thread trimming operations to improve productivity.
3. It's used a parallel vertical needle bar motion for stronger striking power, easily stitch sew medium to heavy and hard materials like leather, canvas, webbing, plastic, synthetic rubbers and elastic materials.
4. The hook containing the lower bobbin is twice the normal size, resulting in less bobbin changes and when combined with the vertical take up lever system, it is of particular use when using thick threads for decorative stitching.
5. A large Zigzag width of up-to 10mm to give nice decorative or functional stitching on a wide range of applications.
6. Modified lubrication and a reservoir in the machine arm reduces maintenance, guarantees the correct lubrication doses, protects the hook against wear.
7. New needle thread tension regulation for more precise tension adjustment.
8. This zigzag sewing machine can also be set to sew straight stitch, multi-points zigzag patterns stitches by changing cams.
Model NO.:  FX-8652D
Max. Sewing Speed:  3000 r.p.m
Max. Sewing Width:  0-10mm
Stitch Length:  0-5mm
Presser Foot Lift:  0-13mm
Needle Bar Stroke:  0-36mm
Thread Take Up Lever Stroke:  0-86mm
Needle Type:  DPX134 12#-19#
Hook:   Large Vertical Hook
Working Space:  265x125mm
Packing Size:  52x53x70cm
Weight:  55KGS
