Large Hook Zigzag Sewing Machine

  • Product Name:  Large Hook Zigzag Sewing Machine
  • Model NO.:  FX-1530
  • Origin:  Zhejiang, China
  • Packing:  Cartons
  • Brand Name:  FOXSEW
  • Product Details:  Large Hook Zigzag Sewing Machine

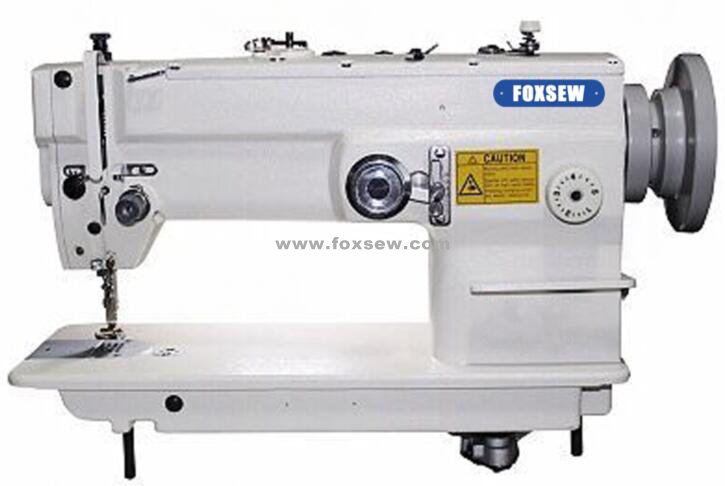

FOXSEW Flat Bed Large Hook Zigzag Sewing Machine with Automatic Oil Lubrication.

This machine adopts differential feed mechanism and hook thread take-off, fully automatic oil-lubrication system, Mechanical rotation in high precision realized perfect stitch, can be used for straight seam, zip seam, embroidery, hemmed seam, wrapped seam, Stable function, easy operation. Suitable for zigzag seam, and decorative seam of light, medium-heavy material leather upholstery, shoes, bags, etc...

This machine is with new mechanism of penduous needle with fast sewing speed up to 2800RPM motor, 50MM pulley, 1.5 times higher efficiency than normal zigzag sewing machines, Fully automatic lubrication assures less friction on machine parts; which increases the life of the machine, and lowers the fee for repairing. The lower shaft transfers the movement to the axle of the rotary shuttle. Double bigger size of a large bobbin reduces the frequency of changing the bobbin thread; and which also rises up sewing efficiency.

This machine is suitable for sewing thin,medium,and thick fabrics of garments such as brassiere,underwear,gloves,shoes and caps,leather articles,bag etc... The machine can make beautiful and high-quality stitches,and it is an important product in relative industry. The machine adopts forward and backward feeding mechanism,and it has advantages in running smoothly and operating easily.

Specifications:

Model NO.:  FX-1530
Max. Sewing Speed:  2800r.p.m
Needle Type:  DPx5
Stitch Length:  0-6mm
Presser Foot Lift:  0-13mm
ZigZag Width:  0-10mm
Weight:  40KGS
Packing Size:  57x35x65cm
