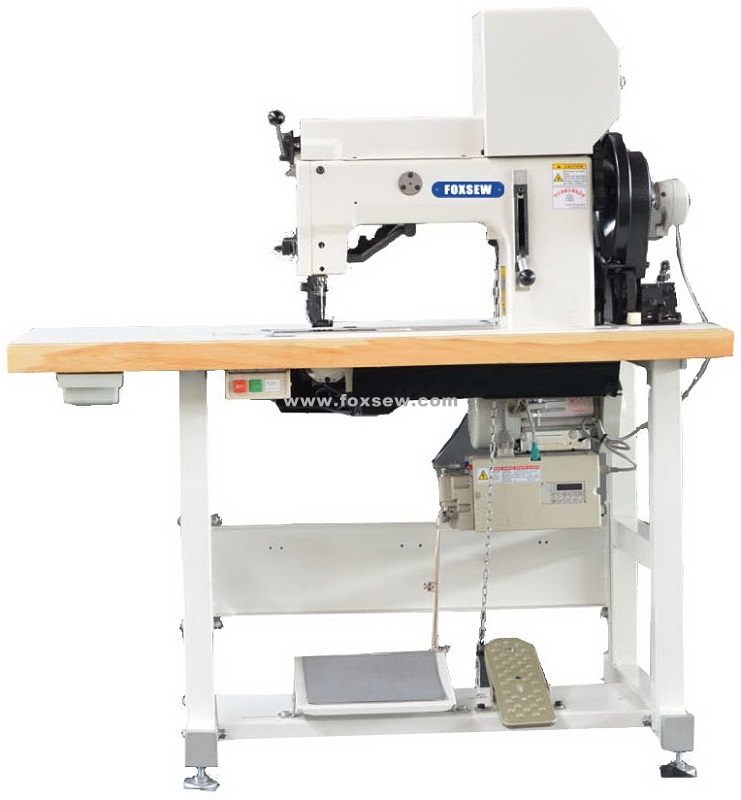

Top and Bottom Feed Multi-Points Thick Thread Zigzag Stitching Machine

  • Product Name:  Top and Bottom Feed Multi-Points Thick Thread Zigzag Stitching Machine
  • Model NO.:  FX-204-104
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Top and Bottom Feed Multi-Points Thick Thread Zigzag Stitching Machine

FOXSEW Top and Bottom Feed Multi Points Heavy Duty Zigzag Sewing Machine for Decorative Seams on Leather and Fabrics, 2-Points, 3-Points and 4-Points Zigzag Stitches.

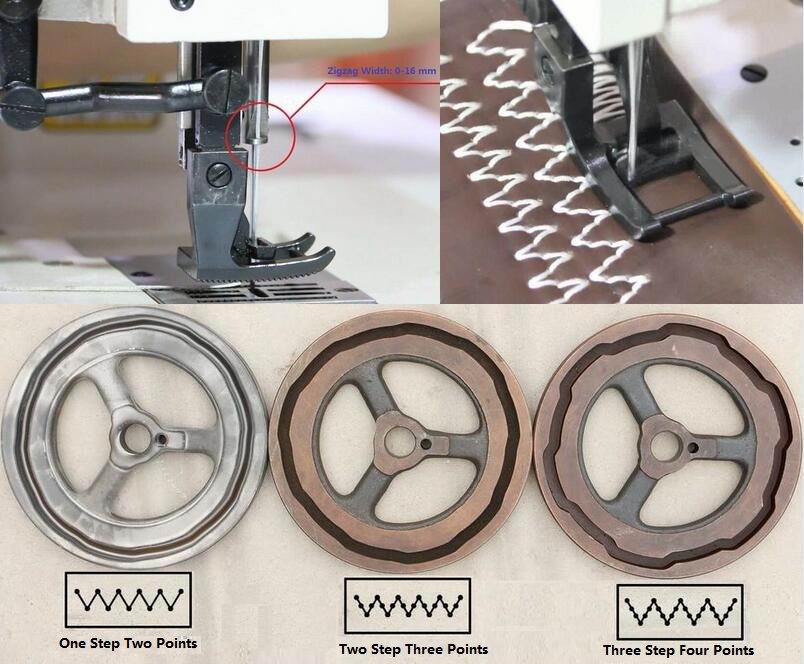

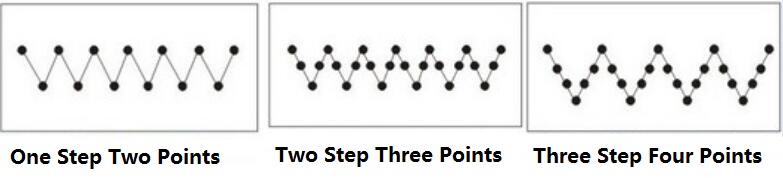

With Double Presser Foot, Change Cams to make different points zigzag stitches, 1-step 2-points, 2-step 3-points, 3-step 4-points.

Working Video: www.foxsew.com/company-video/top-and-bottom-feed-multi-points-thick-thread-zigzag-sewing-machine-for-decorative-stitching-417.html

Application: Leather Sofas, Fabric Sofas, Automotive interiors, Jeans, Fashion bags, High end leather handbags, Tents, Footwear, Shoes uppers, Saddles, Suitcases, Sunshades, Toys and decorative stitching for all kinds of Leather Upholstery.

Features: The new design could realize zigzag sewing machine at many points. It adopts semi-rotate large oscillating shuttle, which could reduce the times of changing bobbin and realize sewing for thick thread. Thick material and decorating sewing. It is suitable for zigzag sewing, both cut sewing and decorating sewing of sofa, cushion shoes, and leather products.

Specifications:

Model

FX-204-104

Max. Sewing Speed

800 r.p.m

Stitch Length

0-10 mm

Presser Foot Lift

By hand: 10 mm  By Knee: 15 mm

Needle Type

DYX3 21#28#

Width between needle point tracers

0-16 mm

Shuttle Hook

KSP-204N

Motor

550W Clutch Motor, 1400 r.p.m
