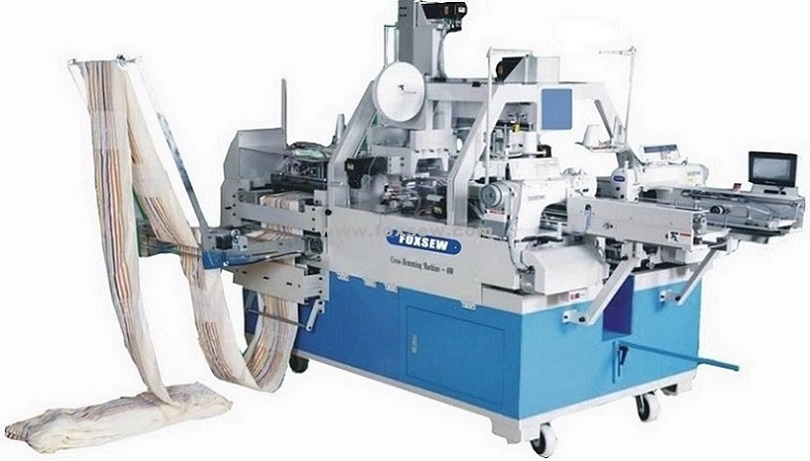

Automatic Towel Cross Hemming Machine

  • Product Name:  Automatic Towel Cross Hemming Machine
  • Model NO.:  FX-AT800
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Towel Cross Hemming Machine

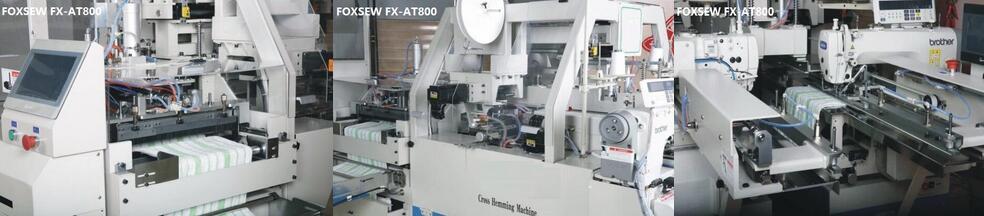

FOXSEW Automatic Towels Cross Hemming Sewing Machine Unit

Working Video-1:

Working Video-2:

Working Video-3:

This automatic towels folding sewing machine filled the gaps of China domestic automatic towels machines market. This machine has stable performance, advance technology, high degree of automation. Also can save lots of labor’s cost, won the majority of towels manufacturers love and trust. This machine equipped with the computer direct drive automatic line cutting sewing machine to achieve excellent sewing quality, setting towels length, transportation towels, automatic marking, automatic towels folding, towels sewing can be done on one automatic towel hemming machine.
Setting towels length: After a certain amount of towel is fed in the machine, the computer will control to cut the feeding towels to a certain length as required.
Transport towels correction section: After towels is drawn out from the machine, the brush plate will smooth the uneven parts of the towels.
Towels folding and label insertion device: Fold the fret part towels into three-folded while the width of this way can be changed about 10mm-25mm for a variety of labels. Cut insert directly from the label roll. No need for a label content.
Towels Sewing: Quick response, comfortable sewing, clean sewing without any oil, user friendly operating disk, easy maintenance, less power consumption, economical type, easy operation with low noise and low vibration.


Model NO.:  FX-AT800
Max. Production Capacity:  600 pcs/ hour
Towels Width:  260-400 mm
Finished Towels Length:  450-1280 mm
Hemming Width:  10-25 mm
Fret Length:  74-164 mm
Back Stitch Length:  1-10 mm (1-1.5mm/stitch)
Power Supply:  220V/50HZ/60HZ, 4.3KW
Max.Air Consumption Flow Rate:  5kg/cm2 4001/min A.N.R
Weight:  1800 KGS
