Automatic Rib Knit Bottom Bands Setter

  • Product Name:  Automatic Rib Knit Bottom Bands Setter
  • Model NO.:  FX-AT325
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Rib Knit Bottom Bands Setter

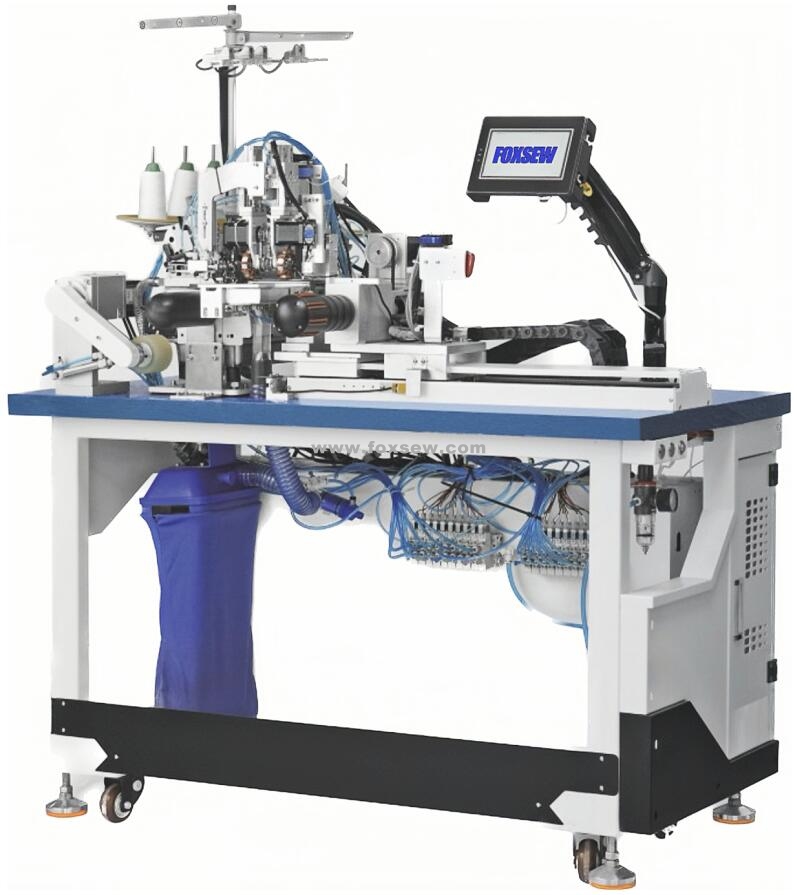

Automatic Rib Knit Bottom Band Setting Station FOXSEW FX-AT325
An automatic workstation for sewing circular rib knit bottom bands on sweatshirts.
Sportswear, Hoodies, Sweatshirts, Coats,Rib-Knit Bottom Bands Hemming.
This unit incorporates a cylinder arm overlock sewing head with vacuum thread trimmer, electronic controls, dual electronic active edge guiding system for band and body, and pneumatic expansion rollers with automatic stacker. 220 – 255 dozen bottom bands per 8 hour shift. (based on a tandem setup). Depending on material and size of parts

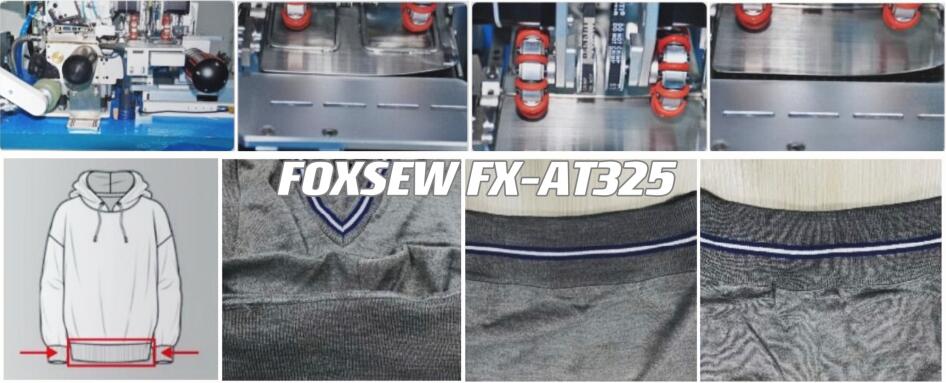

The operator folds the circular rib knit piece in half to form a band and places it over the expansion guide rollers. The rollers automatically expand for loading the body. The body is loaded over the rollers and band and a touch of the start sensor expands the rollers to sew position and indexes the parts under the presser foot and sew cycle begins. The operator is free to load a second machine. When the finished seam is sensed the parts are oversewn a predetermined distance, thread chain is cut, and the part is automatically stacked.
DC electronic motor & microprocessor controls; Tandem operation; Reduces ergonomic risk; Minimizes fabric waste; Uniform gathering; Dual electronic active edge guiding system; Automatic stacking; Increased production; Piece counter. Automatic double rectifying device+ front rectifying device, fabric edge automatic positioning is more stable and sensitive. Switch the size with one key; Broken thread detection  device; Automatic trimming; Discarded ends collection device.
Specifications:
Model NO.:  FOXSEW FX-AT325
Voltage:  110V/220V, 50/60HZ
Air Presser:   90 psi
Diameter Range:  38-80cm, Adjustable
Packing Size:  147x115x151cm
Gas consumption:  150L/Min
