Automatic Round Neck Rib Knit Collar Attaching Machine

Product Name: Automatic Round Neck Rib Knit Collar Attaching Machine
Model NO.: FX-EXT5100-DT Plus
Origin: Zhejiang, China
Packing: Wooden Case
Brand Name: FOXSEW

Product Details: Automatic Round Neck Rib Knit Collar Attaching Machine

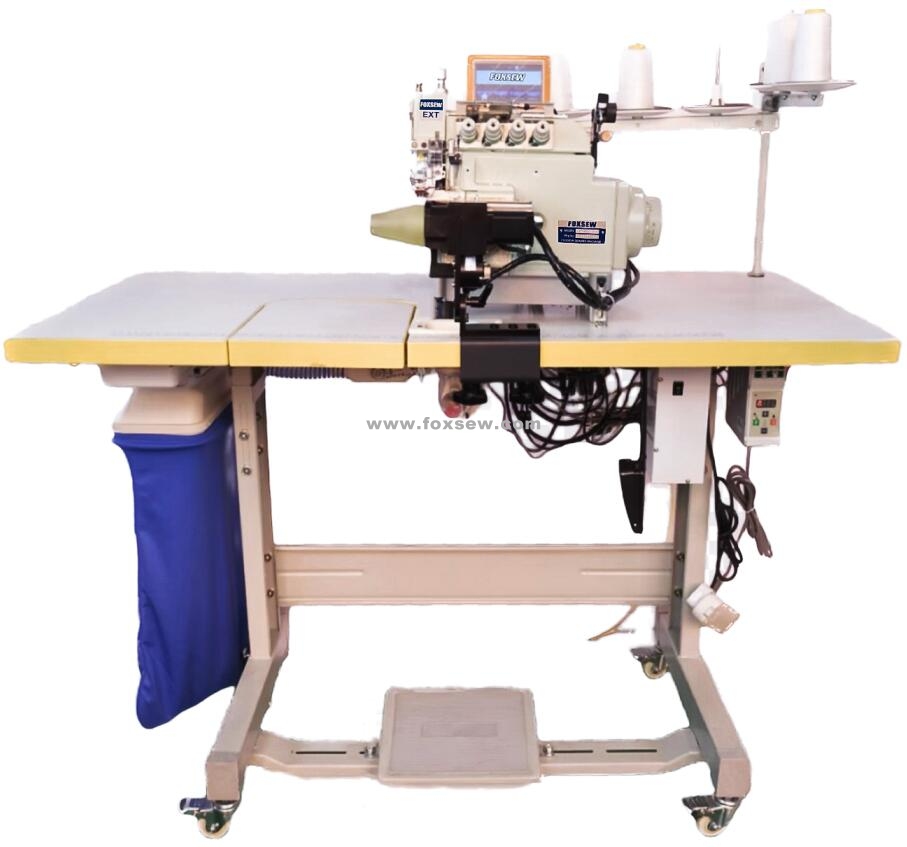

Automatic Round Neck Rib Knit Collar Attaching Machine FOXSEW FX-EXT5100-DT Plus

Working Video-1: www.foxsew.com/company-video/automatic-round-neck-collar-rib-knit-attaching-overlock-sewing-machine-2725.html

Working Video-2: www.foxsew.com/company-video/automatic-round-neck-rib-knit-collar-attaching-machine-2724.html

Automatic Circular rib knit collar setter, For Round Rib Knit Collars, Elastic Waistabands, Cuffs, etc...DC servo motor with control box, Automatic circular collar setter, Circular collar setter control digital panel, chain cutter, suction device, solenoid vales switch, electric knee switch, Pneumatic presser foot lifting, etc...

Eliminate burst of seam as fabric holder guides fabric firmly. Attach collar (waisband) in uniform width thanks to holder which folds them corretly in half.Finish band flatly.which enhances appearance & quality of garments. Improve efficiency.

Automatic position the rib knit collar to ensure the edges are well aligned. Automatic adjust the fabric size.Differential feeding with segmental & reasonable seam allowance.Records the date for repeats.Automatic lift the presser foot trim thread, wastage collecung. Colourized human computer interaction interface.

Feature: it's a machine that automatically sews rib knit and elastic at the hem. It equipped with automatic receiving device, unique double electronic automatic edge guide function. We can cantrol it by program and it has the advantages of simple operation, high efficiency and energy saving.

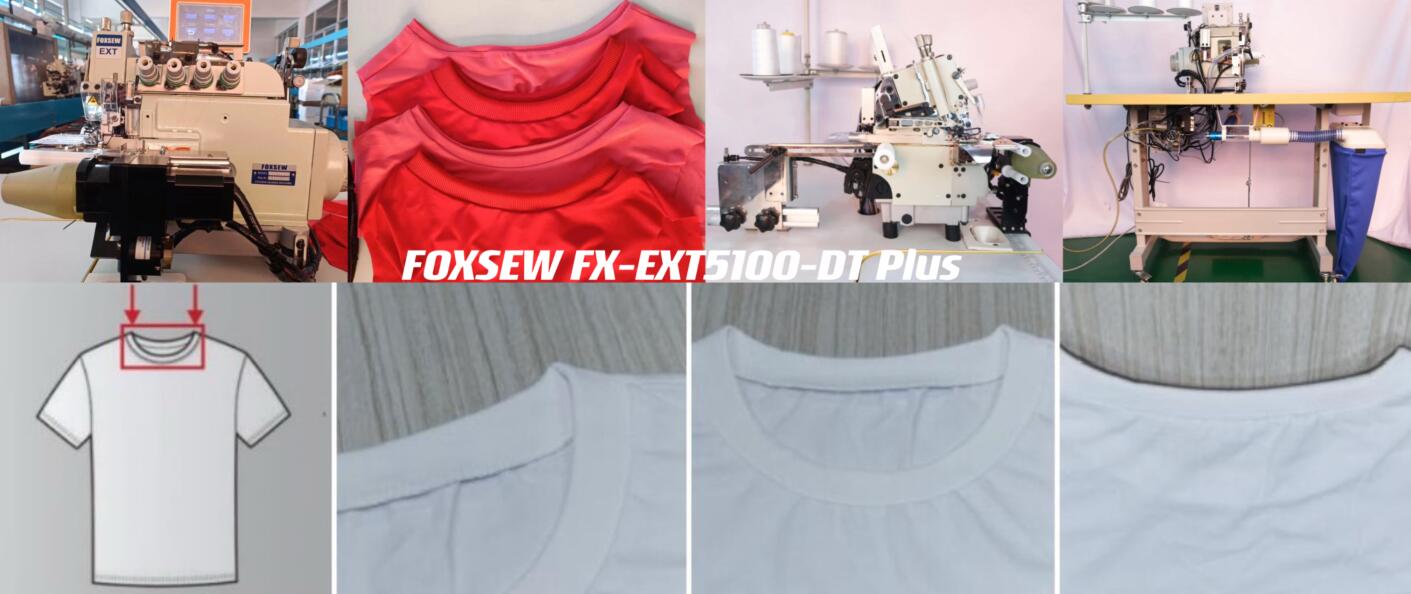

Applications: round neck rib knit collar setting,knitting rib hem, knitting elastic waist head.

Specifications:

Model NO.:	FOXSEW FX-EXT5100-DT Plus
Sewing Speed:	6500rpm
Voltage:	110/220V, 50/60HZ
Packing Size:	128x68x138cm
Weight:	135KGS
Production Capacity:	200-260pcs per hour
