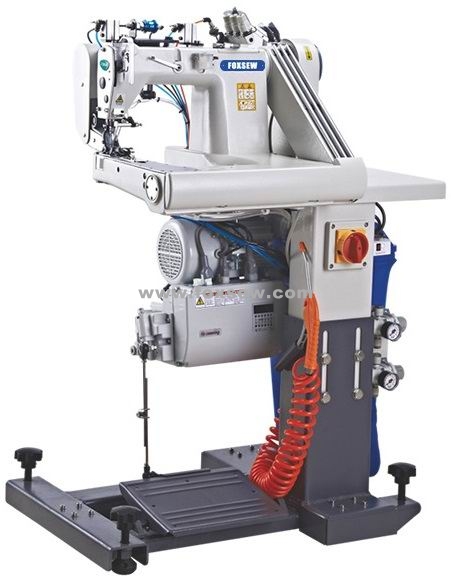

Automatic Feed off the Arm Chainstitch Sewing Machine

  • Product Name:  Automatic Feed off the Arm Chainstitch Sewing Machine
  • Model NO.:  FX-9588D
  • Origin:  Zhejiang, China
  • Packing:  Wooden Case
  • Brand Name:  FOXSEW
  • Product Details:  Automatic Feed off the Arm Chainstitch Sewing Machine

FOXSEW Automatic Feed off the Arm ChainStitch Sewing Machine, Multi-Function High Speed Automatic Feed off the Arm Chain Stitch Sewing Machine

Machine's Features:

Working Video: www.foxsew.com/company-video/automatic-off-the-arm-sewing-machine-for-jeans-2345.html

Key parts are with high hardness coating process, extending the machine life by decreasing the abrasion among the components, and increasing the lubrication among them.
Steel structure stand and table with wheels, convenient to move the machine, steady performance, low noise and low vibration.

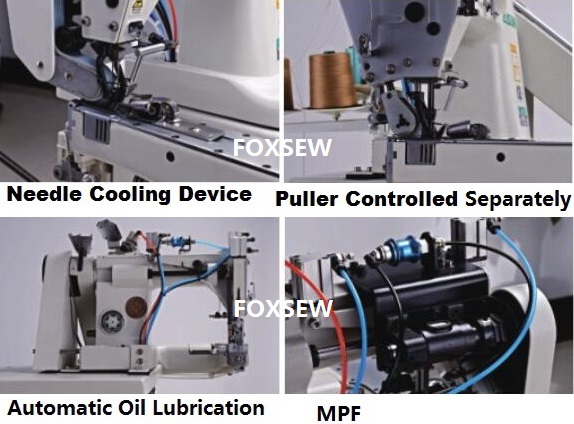

The machine is configured with pneumatic presser lift, puller lift, needle cooler, auto suction thread trimmer.
a. Structural features: the puller is driven from inside, synchronizing to improving the machine speed
b. Slant wide puller, better to cross the joints
Lubricating system: spatter lubricating in machine base, auto lubricating of the upper shaft.
Machine lubrication system: base machine arm lubricating, and machine head automatically lubricating the upper principal axis.

FX-9588D-PLA-MH: Automatic Double-Needle High-Speed Multi-Function Feed-off-the-arm Sewing machine (Direct Drive Mechanical Puller)
FX-9588D-L-PLA-MH: Automatic Three-Needle High-Speed Multi-Function Feed-off-the-arm Sewing machine (Direct Drive Mechanical Puller for Light Duty Materials)
FX-9588D-PL-MH: Automatic Three-Needle High-Speed Multi-Function Feed-off-the-arm Sewing machine (Direct Drive Mechanical Puller)
FX-9588D-XH-PL-MH: Automatic Three-needle High-Speed Multi-Function Feed-off-the-arm Sewing machine (Direct Drive Mechanical Puller for Heavy Duty Materials)
FX-9588D-XH-MPF-MH: Automatic Three-needle high-speed multi-functional feed-off-the-arm Sewing machine (Pneumatic Belt Type Puller for Heavy Duty Materials)
FX-9588D-XH-EPF-SD: Automatic Three-needle high-speed multi-functional feed-off-the-arm Sewing machine (Stepping Direct Drive Puller)

Specifications:
Stitch form: three needles chain stitch.
Max. sewing speed: 4,300rpm
Stitch length: 2.6-4.8mm/stitch.
Needle: 2/3 needles TVx5#21
Motor: servo motor
